For approved filled or packaged bottles, vials and compatible containers, with conveyor feeding through the illuminated inspection zone.
Machine overview
H M Pharma Machines manufactures the Bottle Inspection Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Bottle Inspection Machine uses conveyor feeding through the illuminated inspection zone for pack handling. Its approved process completes when accepted and rejected containers are segregated according to the operating procedure.
Inspection selection starts with the bottle and product, the visible defect classes, lighting and background, and the time needed for the approved operator check. Conveyor presentation and the accepted/rejected-container procedure are reviewed together; an automatic reject lane is included only where specified.
Why this machine
The Bottle Inspection Machine is intended for approved filled or packaged bottles, vials and compatible containers; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Conveyor feeding through the illuminated inspection zone.
Variable-speed drive, lighting control and optional approved/reject lane arrangement.
For the Bottle Inspection Machine, the materials and cleanability review follows this product-contact requirement: Machine construction, contact materials, guarding and inspection surfaces are selected for the approved application and environment.
Container changeover covers guide width, inspection lighting, contrasting background, conveyor speed and the approved inspection procedure.
Accepted and rejected containers are segregated according to the operating procedure.
Operating process

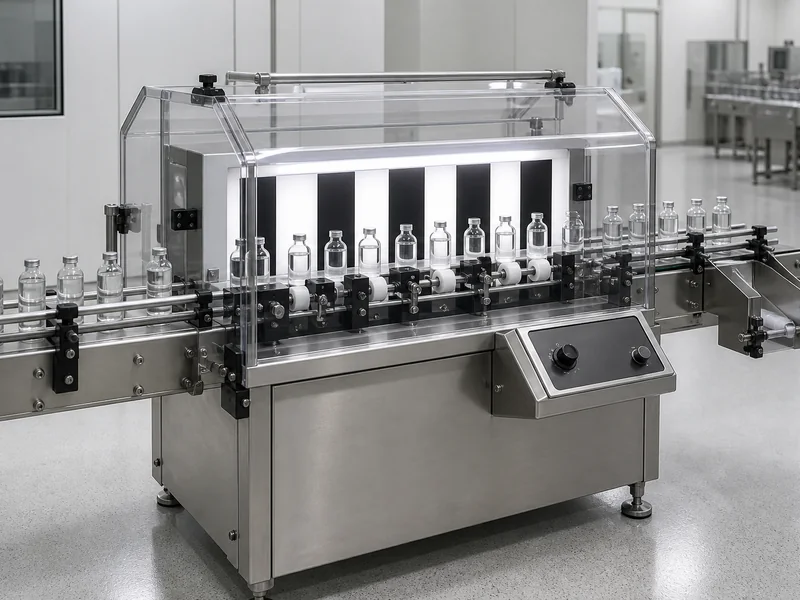

The bottle inspection machine presents each container at a controlled speed under dedicated lighting so an operator can identify visible product or container defects.
The conveyor receives bottles in an orderly flow and carries them toward the illuminated viewing area.
Controlled lighting and contrasting backgrounds improve visibility while the conveyor maintains a suitable inspection pace.
The operator examines the product and container for the defect types defined in the approved inspection procedure.
Rejected bottles are separated according to procedure, while accepted bottles continue to the next packaging operation.
Applications & selection
Pharmaceutical bottles pass through controlled lighting so operators can assess the visible defects listed in the approved inspection procedure.
Nutraceutical containers can be presented against contrasting backgrounds for visual checks of product appearance, fill condition and pack integrity.
Cosmetic and personal-care packs are carried at an inspection pace suited to detecting visible container, closure or product abnormalities.
Food and beverage bottles can be visually examined for the site-defined defect classes before labeling or final packing.
The inspection station supports documented accept-and-reject decisions but does not replace a validated automatic vision system when one is required.
For line upgrades, conveyor speed, lighting, operator access and accepted or rejected product handling are matched to the existing layout.
Technical details
| Machine | Bottle Inspection Machine |
|---|---|
| Category | Special Packaging Systems |
| Suitable For | Approved filled or packaged bottles, vials and compatible containers |
| Working Principle | A variable-speed conveyor presents containers under controlled lighting against contrasting inspection backgrounds for visual classification. |
| Infeed / Handling | Conveyor feeding through the illuminated inspection zone |
| Outfeed / Transfer | Accepted and rejected containers are segregated according to the operating procedure |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Machine construction, contact materials, guarding and inspection surfaces are selected for the approved application and environment. |
| Control System | Variable-speed drive, lighting control and optional approved/reject lane arrangement |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Container rotation, additional operator stations, camera vision, reject and data logging can be separately engineered. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Configuration-specific. Containers per minute are confirmed from bottle spacing, conveyor speed, lighting, operator viewing time and the defect classes in the approved inspection procedure. |
| Accuracy / Acceptance Criterion | Configuration-specific. Agreed defect or challenge samples are assessed under defined lighting, background, container-presentation and viewing conditions. Acceptance, segregation and any configured reject checks follow the approved inspection procedure and FAT protocol. |
| Electrical Power | Published reference. 1 HP, single-phase, 220 V. |
| Utilities | Configuration-specific. Electrical supply, inspection lighting, any configured reject actuator and upstream/downstream line signals are defined for the selected visual-inspection arrangement. |
| Overall Dimensions (L × W × H) | Overall dimensions are model- and configuration-specific. Final L × W × H is confirmed in the customer-approved GA drawing based on capacity, output, process requirements and site layout before order execution. |
| Net / Shipping Weight | Configuration-specific. Net and packed shipping weights are stated in the approved datasheet or packing list. |
| Capacity / Format Range | Published reference. Four-track visual-inspection configuration. |
| Warranty | Published reference. 12 months from dispatch for performance and workmanship; wear parts, consumables, electrical/electronic items and spares excluded. |
| Installation / Commissioning Scope | Order-specific. The quotation states whether installation, commissioning, SAT and operator training are included, together with unloading, positioning, utilities, civil work, trial materials, travel and site responsibilities. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved filled or packaged bottles, vials and compatible containers.
Container rotation, additional operator stations, camera vision, reject and data logging can be separately engineered.
Documentation for the Bottle Inspection Machine records variable-speed drive, lighting control and optional approved/reject lane arrangement, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Variable-speed drive, lighting control and optional approved/reject lane arrangement.
Infeed readiness: conveyor feeding through the illuminated inspection zone.
Approved transfer: accepted and rejected containers are segregated according to the operating procedure.
Configuration-specific: Electrical, pneumatic, data, printing, vision, reject and line-interface requirements are listed for the selected technology.
Configuration-specific: Defect visibility, container presentation, viewing conditions and accept/reject checks follow the approved inspection procedure and FAT protocol.
Container rotation, additional operator stations, camera vision, reject and data logging can be separately engineered.
Related machines
Frequently asked questions
The Bottle Inspection Machine provides a controlled illuminated station for trained operators to inspect visible product and container defects.
Suitable products and formats include approved filled or packaged bottles, vials and compatible containers. Final suitability is confirmed from approved samples, drawings and process details.
A variable-speed conveyor presents containers under controlled lighting against contrasting inspection backgrounds for visual classification.
The Bottle Inspection Machine handles material using conveyor feeding through the illuminated inspection zone.
Inspection throughput is set from bottle spacing, conveyor speed, lighting arrangement, operator viewing time and the defect classes defined in the approved inspection procedure.
Side guides, viewing height, conveyor speed, lighting and contrasting backgrounds are set so the approved container and product remain visible and stable throughout inspection.
The conveyor frame and surface, adjustable guides, lighting enclosure, contrasting inspection panels and guards are selected for the approved bottle and production environment.
The available control scope includes variable-speed drive, lighting control and optional approved/reject lane arrangement. Final alarms and interlocks are documented in the approved control specification.
Container rotation, additional operator stations, camera vision, reject and data logging can be separately engineered.
The station is installed where bottles can be presented in single file, usually before labeling or final packing, with accepted and rejected product handling defined by the site procedure.
The scope can include the inspection-zone layout, lighting and electrical drawings, operating procedure, approved defect or challenge list, manuals and FAT record for presentation and reject handling.
Please provide the following: container and product samples, defined defect list, operator stations, line output, lighting and accept/reject method.
Contact us
Share your application and required capacity for a quotation.
