Machine overview
H M Pharma Machines manufactures the Label Roll Winding Rewinding Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Label Roll Winding Rewinding Machine uses roll mounting and controlled web threading through guides for container or label-web handling. Its approved process completes when completed roll stops at the preset and is removed from the rewind shaft.
Detailed engineering for the Label Roll Winding Rewinding Machine aligns tension, direction, count or length, sensor and preset-stop control with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Label Roll Winding Rewinding Machine is intended for approved self-adhesive label stock and compatible paper, film or foil webs; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Roll mounting and controlled web threading through guides.
Tension, direction, count or length, sensor and preset-stop control.
For the Label Roll Winding Rewinding Machine, the materials and cleanability review follows this product-contact requirement: Machine construction, contact materials, guarding and inspection surfaces are selected for the approved application and environment.
Roll changeover covers the core or chuck, web guides, winding direction, tension setting and the required count, length or coding setup.
Completed roll stops at the preset and is removed from the rewind shaft.
Operating process

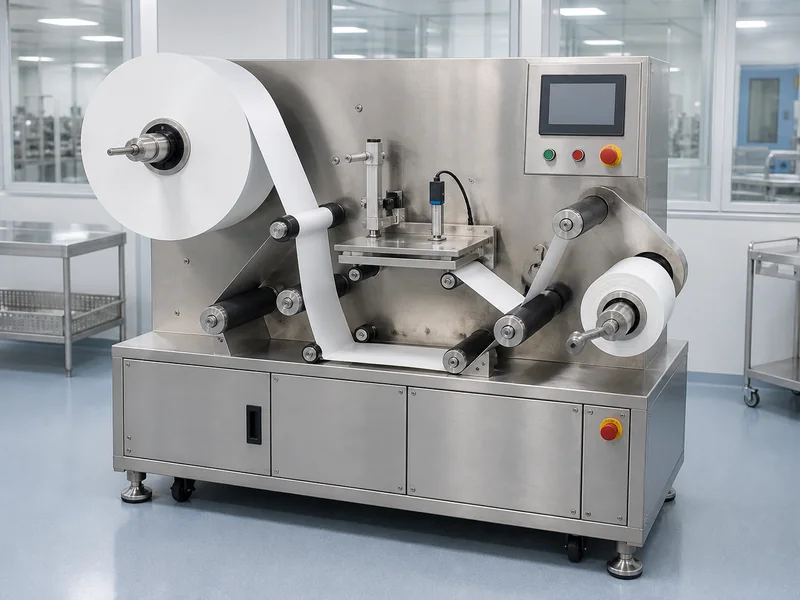

The machine unwinds a mounted label roll under controlled tension, guides and monitors the web, then rebuilds it evenly on the rewind shaft.
The source roll is secured on the unwind shaft and the label web is threaded through the specified rollers, guides and inspection path.
Guides keep the web tracking correctly while the unwind and rewind drives maintain suitable tension across the approved label stock.
Sensors monitor the traveling label web as the rewind shaft draws it forward and builds a uniform finished roll.
The drive stops at the configured count, length or roll condition so the rewound roll can be cut free and removed from the shaft.
Applications & selection
Pharmaceutical label rolls can be rewound while the web is presented for approved visual, print or count checks before use on a production labeler.
Nutraceutical label stock can be transferred to a uniform finished roll after roll core, web width, winding direction and tension are confirmed.
Cosmetic and personal-care label webs can be inspected and rewound without assuming compatibility until delicate finishes, adhesives and liners are trialed.
Food and beverage label rolls can be prepared in the required unwind orientation for the matched labeling machine and packaging line.
For quality traceability, optional sensing or inspection can identify selected web or print conditions while the roll is rewound under control.
Existing label operations can add the rewinder after available floor space, roll sizes, web path and operator-access requirements are reviewed.
Technical details
| Machine | Label Roll Winding Rewinding Machine |
|---|---|
| Category | Labeling Machines |
| Suitable For | Approved self-adhesive label stock and compatible paper, film or foil webs |
| Working Principle | A powered unwind releases the web under controlled tension, sensors monitor it and the rewind shaft builds a uniform finished roll. |
| Infeed / Handling | Roll mounting and controlled web threading through guides |
| Outfeed / Transfer | Completed roll stops at the preset and is removed from the rewind shaft |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Machine construction, contact materials, guarding and inspection surfaces are selected for the approved application and environment. |
| Control System | Tension, direction, count or length, sensor and preset-stop control |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Missing-label detection, splice table, coding, vision, slitting, bidirectional winding and web guiding are configurable. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. Up to 150 labels per minute, depending on label size. |
| Accuracy / Acceptance Criterion | Configuration-specific. Label-placement tolerance and FAT method are confirmed after approved container-and-label sample trials. |
| Electrical Power | Published reference. 0.5 kW; 230 V, single-phase, 50 Hz. |
| Utilities | Configuration-specific. Electrical supply is required; compressed air is listed only for configured actuators, with coding, vision and data interfaces stated separately. |
| Overall Dimensions (L × W × H) | Published reference. 750 × 500 × 800 mm (L × W × H). |
| Net / Shipping Weight | Published reference. Approximately 150 kg net / 200 kg gross. |
| Capacity / Format Range | Published reference. Label height 10–100 mm; label length 12 mm to unlimited; minimum gap 3 mm; roll diameter up to 300 mm; core diameter 75–76 mm. |
| Warranty | Published reference. 1 year; commencement, coverage and exclusions are defined in the approved order. |
| Installation / Commissioning Scope | Published reference. Installation and commissioning are available; the exact included work and customer responsibilities are defined in the approved order. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved self-adhesive label stock and compatible paper, film or foil webs.
Missing-label detection, splice table, coding, vision, slitting, bidirectional winding and web guiding are configurable.
Documentation for the Label Roll Winding Rewinding Machine records tension, direction, count or length, sensor and preset-stop control, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Tension, direction, count or length, sensor and preset-stop control.
Infeed readiness: roll mounting and controlled web threading through guides.
Approved transfer: completed roll stops at the preset and is removed from the rewind shaft.
Configuration-specific: Electrical supply is required; compressed air is listed only for configured actuators, with coding, vision and data interfaces stated separately.
Configuration-specific: Label-placement tolerance and FAT method are confirmed after approved container-and-label sample trials.
Missing-label detection, splice table, coding, vision, slitting, bidirectional winding and web guiding are configurable.
Related machines
For bottle geometry, label rolls and application choices, read the bottle labeling machine selection guide.
Frequently asked questions
The Label Roll Winding Rewinding Machine rewinds label rolls to the required direction, core or count while supporting inspection and optional offline coding.
Suitable products and formats include approved self-adhesive label stock and compatible paper, film or foil webs. Final suitability is confirmed from approved samples, drawings and process details.
A powered unwind releases the web under controlled tension, sensors monitor it and the rewind shaft builds a uniform finished roll.
The Label Roll Winding Rewinding Machine handles material using roll mounting and controlled web threading through guides.
Web speed and completed-roll time depend on label stock, web width, roll diameter, core size, tension limit and any counting or inspection function used during rewinding.
Unwind and rewind shafts, cores, web guides, tension settings, winding direction and sensor setup are matched to the approved liner, label web and finished-roll requirement.
Unwind and rewind shafts, roll cores or adapters, web guides, rollers, frame and guards are selected for label width, roll weight, liner surface and tension duty.
The available control scope includes tension, direction, count or length, sensor and preset-stop control. Final alarms and interlocks are documented in the approved control specification.
Missing-label detection, splice table, coding, vision, slitting, bidirectional winding and web guiding are configurable.
The machine normally operates offline in label preparation or inspection, but optional data, count or inspection outputs can be linked to the site's label-control workflow.
Available documents can include the roll and core range, web-path and winding-direction drawing, tension and drive information, sensor and electrical diagrams, operating manual and roll-quality FAT checklist.
Please provide the following: label and web sample, width, roll diameter and weight, core, winding diagram, count, inspection, coding and speed.
Contact us
Share your application and required capacity for a quotation.
Confirmed standards
The machine is part of the labeling-machine range. Output, web range, utilities and dimensions remain subject to the approved machine scope.
Automation uses a Delta PLC, 4-inch Delta HMI and Delta drive/VFD.
Delta servo is used where servo motion is included in the selected configuration.
The confirmed warranty period is one year.
Installation and commissioning are available; the exact scope is defined in the approved order.
