Verified Bottle Range
The Round Bottle Sticker Labeling Machine handles approved 50 mL–1 L HDPE round bottles.
Automatic Wrap-Around Sticker Labeling System

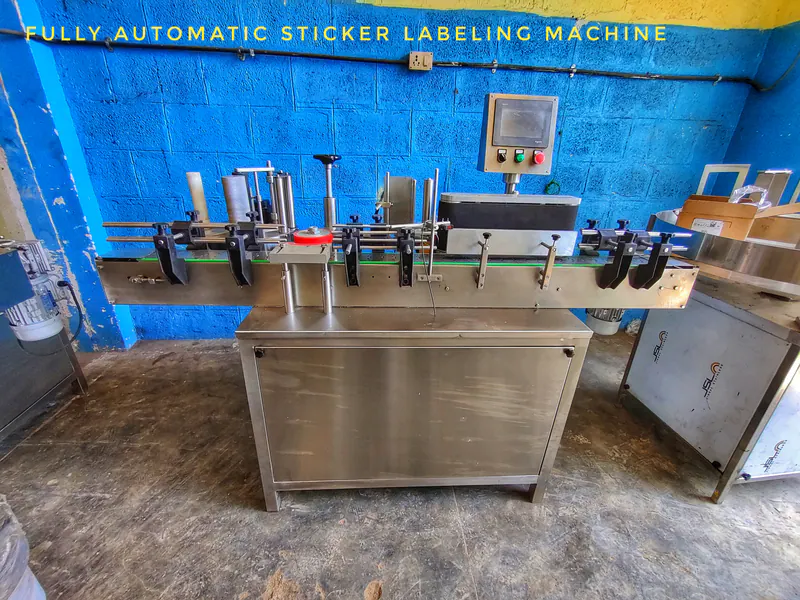

Round Bottle Sticker Labeling Machine
The machine applies wrap-around self-adhesive labels to approved 50 mL–1 L HDPE round bottles at up to 40 BPM.
- Output
- Reference: Up to 40 BPM
- Format
- 50 mL–1 L HDPE round bottles
- Accuracy
- Reference: ±1 mm label placement accuracy
- Method
- Standard stepper label dispensing
Automatic wrap-around sticker labeling for approved HDPE round bottles
Machine overview
Automatic Round Bottle Sticker Labeling Machine Manufacturer in India
H M Pharma Machines manufactures this automatic wrap-around sticker labeling machine in Ahmedabad, Gujarat, India for approved 50 mL–1 L HDPE round bottles.
Bottles travel from left to right. A bottle separator and synchronized conveyor position and rotate each bottle for wrap-around self-adhesive label application.
Rated output is up to 40 BPM and label placement accuracy is ±1 mm, subject to the approved bottle, label and label-roll samples.
Machine running video
Watch the Round Bottle Sticker Labeling Machine in Operation
Review the reference machine demonstration, then discuss your container format and required output.
Select Play to load the video. This demonstration shows a reference configuration; final format parts, output, utilities, controls and guarding follow the approved project scope.
Verified configuration
Verified Operating Range
Final suitability remains subject to approved bottle, label and label-roll samples.
40 BPMMaximum rated output
50 mL–1 LApproved HDPE bottle range
±1 mmPlacement accuracy
300 mmMaximum bottle height
Why this machine
Verified Features of the Round Bottle Sticker Labeling Machine
02
Wrap-Around Application
The synchronized conveyor positions and rotates each bottle for self-adhesive label application.
03
Delta Controls
Delta PLC, Delta 4-inch HMI and Delta drive/VFD provide operator control and synchronized speed adjustment.
04
Automatic Label-Length Detection
The control system detects label length for the approved label roll.
05
GMP-Model Construction
SS-304 cladding is used in exposed machine areas.
06
Low-Maintenance Changeover
Final settings and change parts are matched to approved bottle and label samples.
Operating process
How the Round Bottle Sticker Labeling Machine Works
The verified configuration moves bottles from left to right through four synchronized stages.
Bottle Infeed
Approved bottles enter the adjustable conveyor.
Bottle Separation
A separator spaces each bottle for controlled label application.
Wrap-Around Labeling
The synchronized handling system positions and rotates each bottle while the self-adhesive label is applied.
Discharge
The labeled bottle transfers from the machine for the next approved line operation.
Applications & selection
Approve the Round Bottle and Label Together
Published Bottle Range
The HSL-120 reference covers approved 50 mL–1 L HDPE round bottles, with a maximum bottle height of 300 mm.
Cylindrical Label Surface
Submit the bottle diameter, height and label position with a physical sample so spacing and controlled rotation can be reviewed.
Wrap-Around Application
Confirm full or partial wrap, label size and the required position on the approved cylindrical bottle.
Actual Label Roll
Provide the self-adhesive label stock, backing, roll size and winding direction. Final label and roll ranges are confirmed from approved samples.
Transparent Label Option
If the label is transparent, submit the actual label and backing for the optional transparent-label sensor review; the sensor make is confirmed with the order.
Output and Placement
The published reference is up to 40 BPM and ±1 mm placement, subject to bottle and label quality and the approved operating conditions.
The approved bottle and label samples establish the trial basis. Confirm the label reference position, required output and acceptance method in the quotation; other container materials or formats require a separate review.
Technical details
Round Bottle Sticker Labeling Machine Specifications
40 BPMMaximum output
±1 mmPlacement accuracy
220 V ACSingle-phase, 50 Hz
4 kWApproximate connected load
| Machine | Round Bottle Sticker Labeling Machine |
|---|---|
| Application | Wrap-around self-adhesive sticker labeling |
| Operating Direction | Left to right |
| Maximum Bottle Height | 300 mm |
| Conveyor Height | Adjustable 800–900 mm |
| Construction | GMP model with SS-304 cladding in exposed areas |
|---|---|
| Controls | Delta PLC, Delta 4-inch HMI and Delta drive/VFD |
| Label Drive | Stepper motor standard; optional Delta servo upgrade |
| Compressed Air | Not required for the standard configuration |
| Safety | No-bottle/no-label interlock, emergency stop and overload protection |
| Model / Series | Published reference. HSL-120 |
|---|---|
| Output / Throughput | Published reference. Up to 40 bottles per minute (BPM), subject to approved samples and operating conditions. |
| Accuracy / Acceptance Criterion | Published reference. ±1 mm label placement, subject to bottle and label quality. |
| Electrical Power | Published reference. 220 V AC, single-phase, 50 Hz; approximately 4 kW connected load. |
| Utilities | Published reference. Compressed air is not required for the standard configuration; coding, vision and data interfaces are order-specific. |
| Overall Dimensions (L × W × H) | Published reference. 2000 × 1250 × 1500 mm (L × W × H); conveyor height adjustable from 800 to 900 mm. |
| Net / Shipping Weight | Published reference. Approximately 250 kg net / 300 kg gross. |
| Capacity / Format Range | Published reference. Approved 50 mL–1 L HDPE round bottles; final label and roll ranges are confirmed from approved samples. |
| Warranty | Published reference. 12 months from dispatch, subject to the approved order terms. |
| Installation / Commissioning Scope | Published reference. One-time installation, commissioning and operator training are included, subject to the responsibilities defined in the approved order. |
Final suitability requires approved bottle, label and label-roll samples. Any project-specific deviations and the transparent-label sensor make are confirmed with the approved order.
Options & project scope
Verified Configuration and Support
Standard Label Drive
Stepper-motor label dispensing is included in the standard configuration.
Optional Servo Upgrade
Delta servo-based label dispensing is available as the verified drive upgrade.
Transparent Labels
An optional transparent-label sensor can be selected; the sensor make is confirmed with the approved order.
Installation Support
One-time installation, commissioning and operator training are included. Customer-side utilities and site logistics follow the approved order responsibilities.
Controls & protection
Verified Controls, Alarms and Safety Interlocks
The verified control platform combines synchronized label dispensing with essential operator and drive protection.
Delta PLC & VFD
Delta PLC logic and Delta drive/VFD control the machine sequence and synchronized speeds.
4-Inch Delta HMI
The operator interface uses a 4-inch Delta HMI.
Automatic Label Detection
Automatic label-length detection supports setup for the approved label roll.
No-Bottle / No-Label
The machine includes no-bottle/no-label interlock logic.
Emergency Stop
An emergency-stop control is included in the verified safety scope.
Overload Protection
Drive and motor overload protection is included.
Frequently asked questions
Round Bottle Sticker Labeling Machine FAQs
Answers based on the verified machine configuration and approved sample requirements.
Which bottles are suitable for this machine?
The verified range is approved 50 mL–1 L HDPE round bottles. Final suitability depends on approved bottle and label samples.
What labeling speed is published for the Round Bottle Sticker Labeling Machine?
Published output is up to 40 bottles per minute, subject to approved bottle and label samples, wrap-around application and operating conditions.
What label-placement accuracy is published for the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, label placement accuracy is ±1 mm, subject to bottle and label quality and approved samples.
Which controller and label-drive arrangement is used on the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, the machine uses a Delta PLC, Delta 4-inch HMI and Delta drive/VFD. Standard label dispensing uses a stepper motor; a Delta servo dispensing upgrade is optional.
Which utilities are required by the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, the verified electrical supply is 220 V AC, single-phase, 50 Hz with an approximate 4 kW connected load. Compressed air is not required for the standard configuration.
What is the machine weight?
Weight is approximately 250 kg net and 300 kg gross. Published overall dimensions are 2000 × 1250 × 1500 mm (L × W × H), with conveyor height adjustable from 800 to 900 mm.
Which safety interlocks are verified on the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, the verified scope includes no-bottle/no-label logic, emergency stop and overload protection.
Which optional features are verified for the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, verified options are Delta servo-based label dispensing and a transparent-label sensor. The sensor make is confirmed with the approved order.
What warranty and installation support is listed for the Round Bottle Sticker Labeling Machine?
For the Round Bottle Sticker Labeling Machine, the warranty is 12 months from dispatch. One-time installation, commissioning and operator training are included; customer-side site utilities and logistics are arranged as specified in the approved order.
