Servo Torque Capping
A 750 W Delta servo motor operates the single capping head in torque mode.
Automatic Linear Screw Capping System
Automatic Linear Single Head Servo Torque Capping Machine
This automatic single-head machine handles approved 500 mL–5 L bottles and 22–50 mm screw caps and uses a 750 W Delta servo motor in torque mode with HMI torque adjustment.
- Bottle range
- 500 mL–5 L bottle range
- Cap range
- 22–50 mm screw caps
- Output
- Reference: Up to 24 bottles per minute
- Controls
- 750 W Delta servo torque control

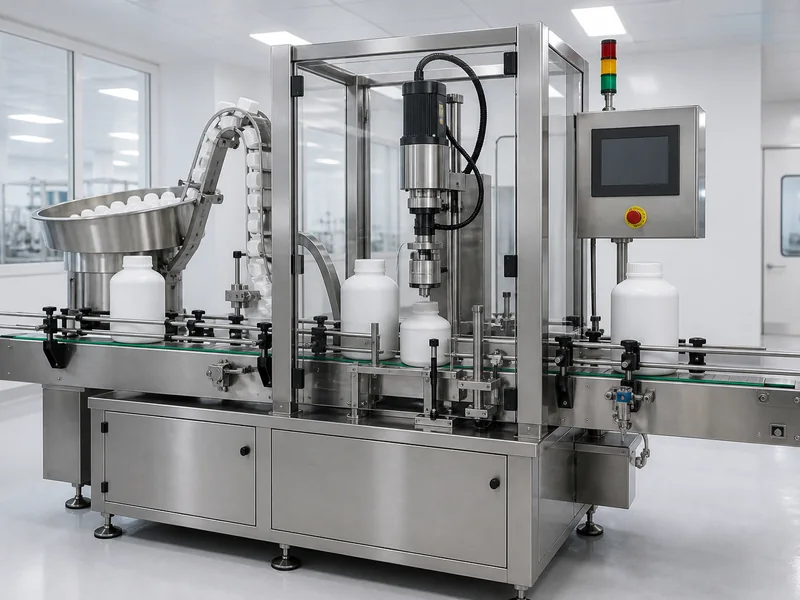

AI-generated conceptual visualization of this machine. Final configuration may vary by approved project scope.
Machine overview
Automatic Single Head Servo Torque Capping Machine Manufacturer in India
H M Pharma Machines manufactures this automatic linear single-head capping machine in Ahmedabad, Gujarat, India for approved 500 mL–5 L bottles fitted with 22–50 mm screw caps.
A 750 W Delta servo motor operates the single capping head in torque mode. Torque is adjustable through the HMI, and the machine automatically picks up, places and tightens the approved cap.
The confirmed output is up to 24 bottles per minute, depending on the bottle and cap. Bottle material, cap fit, torque setting and rated output are finalized through trials with approved samples.
Configuration summary
Confirmed Single-Head Capping Configuration
The published figures below are taken from the confirmed machine configuration; final cap fit, torque and speed remain subject to approved bottle and cap trials.
500 mL–5 LApproved bottle range
22–50 mmScrew-cap diameter range
Up to 24 BPMDepends on bottle and cap
1 HeadServo torque capping station
Why this machine
Key Features of the Automatic Linear Single Head Servo Torque Capping Machine
02
Adjustable Torque
The required tightening torque is set through the HMI operator interface.
03
Automatic Cap Handling
The machine automatically picks up and places the approved screw cap before tightening.
04
SS304 Structure
The confirmed machine structure is manufactured in SS304.
05
Confirmed Format Range
The machine handles approved 500 mL–5 L bottles and 22–50 mm screw caps, with maximum bottle height of 300 mm.
06
Production Safety
No-container/no-capping logic, emergency stop and overload protection are included.
Operating process
How the Linear Servo Torque Capping Cycle Works
The left-to-right conveyor carries approved bottles through a four-stage automatic screw-capping cycle.
Bottle Infeed
Approved bottles enter on the 150 mm wide conveyor.
Cap Pickup & Placement
The approved screw cap is automatically picked up and placed on the bottle.
Servo Torque Tightening
The single Delta servo-driven head tightens the cap to the HMI-adjusted torque setting.
Automatic Discharge
The capped bottle leaves the capping station on the left-to-right conveyor.
Application & project selection
Configured for the Approved Bottle and Screw Cap
500 mL–5 L Bottles
Published bottle-volume range for the confirmed machine configuration.
22–50 mm Screw Caps
Cap diameter, thread and fit are checked against approved samples.
Single-Head Capping
One servo torque head performs the automatic tightening operation.
Sample-Based Approval
Bottle material, cap fit, torque setting and rated output are confirmed through trials.
Automatic Conveyor Handling
A 12-foot conveyor carries bottles from left to right at an adjustable working height.
Line Integration
The capping machine can receive bottles from and discharge them to approved line equipment.
Technical details
Automatic Linear Single Head Servo Torque Capping Machine Specifications
750 WDelta servo motor
8 CFMCompressed air at 6 bar
12 ftLinear conveyor length
300 kgApproximate net weight
| Machine | Automatic Linear Single Head Servo Torque Capping Machine |
|---|---|
| Bottle Material | Confirmed against approved bottle samples |
| Maximum Bottle Height | 300 mm |
| Cap Type | Approved screw caps |
| Cap Diameter | 22–50 mm |
| Capping Heads | 1 |
| Direction | Left to right |
| Servo Motor | 750 W Delta servo, torque mode |
|---|---|
| Torque Adjustment | Through HMI operator interface |
| PLC | Delta |
| VFD / Drive | Delta |
| Machine Structure | SS304 |
| Compressed Air | 8 CFM at 6 bar |
| Conveyor | 12 ft long, 150 mm wide; adjustable height 800–900 mm |
| Model / Series | Configuration-specific. Automatic linear single-head servo-torque configuration; the order-specific model code is stated in the approved quotation. |
|---|---|
| Output / Throughput | Published reference. Up to 24 bottles per minute, depending on the approved bottle and cap. |
| Accuracy / Acceptance Criterion | Configuration-specific. Torque setpoint is recipe/HMI controlled; guaranteed torque tolerance and closure acceptance are confirmed after approved bottle-and-cap trials. |
| Electrical Power | Published reference. 440 V AC, three-phase, 50 Hz; approximately 4 kW connected load. |
| Utilities | Published reference. Compressed air: 8 CFM at 6 bar; cap-feeding and line-handshake requirements are configuration-specific. |
| Overall Dimensions (L × W × H) | Published reference. Approximately 3648 × 800 × 2000 mm (L × W × H). |
| Net / Shipping Weight | Published reference. Approximately 300 kg net / 500 kg gross. |
| Capacity / Format Range | Published reference. Approved 500 mL–5 L bottles and 22–50 mm caps. |
| Warranty | Order-specific. Duration, commencement date, covered parts, exclusions and claim terms are stated in the approved quotation or order. |
| Installation / Commissioning Scope | Order-specific. The quotation states whether installation, commissioning, SAT and operator training are included, together with unloading, positioning, utilities, civil work, trial materials, travel and site responsibilities. |
Bottle material, cap fit, torque setting and rated output are finalized through approved bottle and cap trials.
Machine scope
Confirmed Construction, Controls and Line Details
Bottle & Cap Range
Approved 500 mL–5 L bottles, maximum 300 mm high, with 22–50 mm screw caps.
Capping Assembly
One capping head driven by a 750 W Delta servo motor in torque mode.
Conveyor Interface
Left-to-right, 12-foot conveyor with 150 mm width and 800–900 mm adjustable height.
Sample-Based Approval
Bottle material, cap fit, torque setting and rated output are confirmed from trials with approved samples.
Controls & protection
Confirmed Operating Controls and Safety Interlocks
The machine uses PLC, HMI and Delta motion controls with the following confirmed production functions and protections.
No Container, No Capping
The capping operation is inhibited when a container is not present at the capping position.
Automatic Cap Handling
The machine automatically picks up and places the approved cap.
HMI Torque Adjustment
The tightening torque is adjusted through the HMI operator interface.
Emergency Stop
An emergency-stop circuit is provided for operator safety.
Overload Protection
Electrical overload protection is included in the machine control system.
Delta Motion Control
A Delta PLC, Delta VFD and 750 W Delta servo motor control the machine sequence and capping operation.
Related machines
Compare Closure Methods and Capping Machines
Before choosing a head configuration, read our ROPP versus screw capping selection guide to confirm the closure method, bottle-neck and cap samples, and the agreed checks for your trial.
For the format drawings and change parts to review with the selected machine, read the machine change-parts guide.
Frequently asked questions
Automatic Linear Single Head Servo Torque Capping Machine FAQs
Confirmed answers covering bottle and cap range, output, controls, utilities and machine dimensions.
Which bottle and cap sizes are suitable for this machine?
The confirmed bottle range is 500 mL–5 L with a maximum bottle height of 300 mm. It is configured for approved 22–50 mm screw caps. Bottle material and cap suitability are confirmed against samples.
What is the published capping speed of the Linear Servo Torque Capping Machine?
The published reference is up to 24 bottles per minute, depending on bottle and cap handling, cap placement and the approved torque cycle.
How many capping heads are provided?
This model has one servo torque capping head.
Which servo system is used?
A 750 W Delta servo motor operates in torque mode for adjustable screw-cap tightening.
How is capping torque adjusted?
The capping torque is adjusted through the HMI operator interface.
Which automation components are confirmed?
The confirmed controls include a Delta PLC, Delta VFD, Delta servo system and an HMI operator interface.
Which electrical and pneumatic services are required by the Automatic Linear Single Head Servo Torque Capping Machine?
For the Automatic Linear Single Head Servo Torque Capping Machine, the electrical supply is 440 V AC, three-phase, 50 Hz with approximately 4 kW connected load. Compressed air requirement is 8 CFM at 6 bar.
Which conveyor arrangement is published for the Automatic Linear Single Head Servo Torque Capping Machine?
For the Automatic Linear Single Head Servo Torque Capping Machine, the conveyor runs left to right, is 12 feet long and 150 mm wide, with an adjustable working height of 800–900 mm.
Which construction material is specified?
The machine structure is SS304. Bottle and cap suitability are confirmed from approved samples.
Which operating and safety controls are included?
Confirmed functions include automatic cap pickup and placement, adjustable torque, no-container/no-capping logic, emergency stop and overload protection.
What dimensions and weight are published for the Automatic Linear Single Head Servo Torque Capping Machine?
For the Automatic Linear Single Head Servo Torque Capping Machine, overall dimensions are 3648 × 800 × 2000 mm. Approximate net weight is 300 kg and gross weight is 500 kg.
How is final bottle and cap suitability confirmed?
Bottle material, cap fit, torque setting and rated output are finalized through review and trials with approved samples.
