For approved bottles with compatible aluminum ROPP caps and neck finish, with conveyor infeed with bottle support and cap placement.
Machine overview

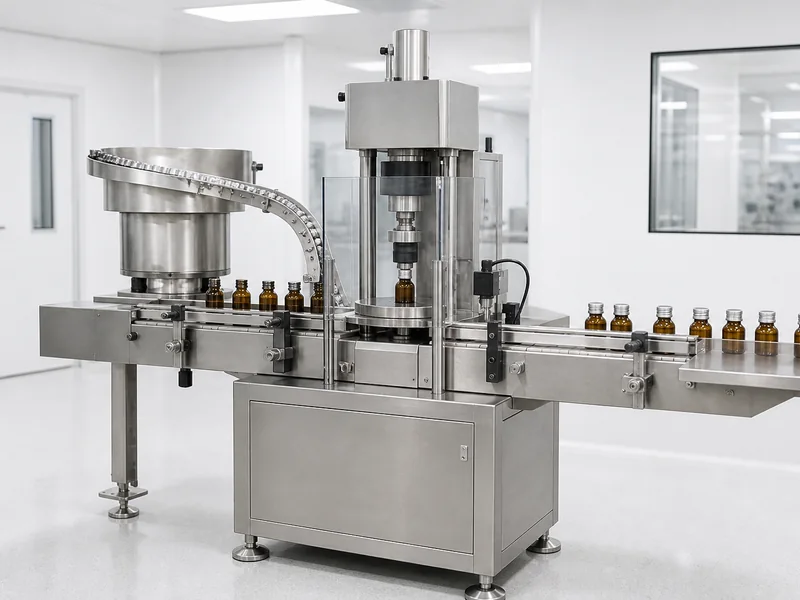

H M Pharma Machines manufactures the Single Head ROPP Capping Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Single Head ROPP Capping Machine uses conveyor infeed with bottle support and cap placement for container and closure handling. Its approved process completes when sealed containers discharge for inspection and labeling.
Detailed engineering for the Single Head ROPP Capping Machine aligns bottle detection, cap presence, head lift and drive controls with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Single Head ROPP Capping Machine is intended for approved bottles with compatible aluminum ROPP caps and neck finish; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Conveyor infeed with bottle support and cap placement.
Bottle detection, cap presence, head lift and drive controls.
For the Single Head ROPP Capping Machine, the materials and cleanability review follows this product-contact requirement: Closure-contact components, guides, star wheels and guarding are configured from approved bottle and cap samples.
ROPP changeover covers the bottle guides, neck support, cap path and the roller and top-pressure settings for the approved closure.
Sealed containers discharge for inspection and labeling.
Operating process
Each supported bottle stops beneath one ROPP head, where an aluminum cap is held under top pressure and roll-formed around the approved neck finish.
The conveyor delivers one bottle to the capping station, where it is stopped, stabilized and supported beneath the ROPP head.
A compatible ROPP cap is placed squarely over the bottle neck before the head begins the forming cycle.
The head applies controlled top pressure while forming rollers shape the cap skirt and pilfer-proof band against the neck finish.
The head clears, the finished bottle is released from the station and the conveyor carries it to inspection or labeling.
Applications & selection
Pharmaceutical bottles or compatible vials are individually supported while one ROPP head forms the approved aluminum closure around the neck finish.
Nutraceutical containers can be sealed after cap dimensions, pilfer-proof band, bottle support and closure integrity are verified by trials.
Cosmetic and personal-care packs are suitable only when their neck and aluminum ROPP cap match the single-head forming tooling.
Food and beverage bottles can use single-station ROPP sealing where the required output and approved closure system suit indexed operation.
Chemical and agrochemical containers require liner, material, seal-integrity and product-compatibility review before ROPP parameters are set.
The single-head ROPP capper can be placed after filling and before inspection or labeling with coordinated bottle stops and conveyor signals.
Technical details
| Machine | Single Head ROPP Capping Machine |
|---|---|
| Category | Capping Machines |
| Suitable For | Approved bottles with compatible aluminum ROPP caps and neck finish |
| Working Principle | The cap is placed squarely on the bottle, supported below the head and rolled against the neck finish under controlled top pressure. |
| Infeed / Handling | Conveyor infeed with bottle support and cap placement |
| Outfeed / Transfer | Sealed containers discharge for inspection and labeling |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Closure-contact components, guides, star wheels and guarding are configured from approved bottle and cap samples. |
| Control System | Bottle detection, cap presence, head lift and drive controls |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Cap feeder, neck support, head design, cap-size formats and rejection are engineered from samples. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Capping arrangement | Single ROPP forming head with one supported bottle at the station; the quotation identifies the head, feed and assigned model. |
|---|---|
| Bottle and cap formats | Approve bottle height, diameter and neck finish together with the aluminum ROPP cap, liner and pilfer-band geometry. |
| Bottle support and cap placement | Define bottle guides, station stop and neck support; the selected cap-placement method must seat the cap squarely before forming. |
| Forming settings | Document the head's top-pressure and roller settings for the approved neck finish and cap sample. |
| Output assessment | Agree bottles per minute against arrival, stabilization, cap presentation, head descent, forming time and finished-bottle release. |
| Closure acceptance and FAT | Agree thread and pilfer-band formation, closure and seal checks for the approved bottle/cap combination and the stated test plan. |
| Controls and line signals | Define bottle detection, cap presence, head lift and drive controls; inspection or rejection applies only where included in the order. |
| Electrical and pneumatic services | List supply and connected load for the head, conveyor and any fitted cap feeder; specify compressed air for the selected actuators. |
| Format changeover | Record bottle guides, neck supports, cap-path parts and roller/top-pressure adjustments required for each approved closure. |
| Footprint and shipping | The GA drawing defines conveyor height, cap-feed and head-service access; the final documents state overall dimensions and net/packed weights. |
| Warranty | The approved quotation or order defines duration, commencement, head and feeder coverage, exclusions and claim terms. |
| Installation and commissioning | Define station alignment, neck support and roller setup, cap-feed trials and training, including approved bottle/cap and site utility responsibilities. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved bottles with compatible aluminum ROPP caps and neck finish.
Cap feeder, neck support, head design, cap-size formats and rejection are engineered from samples.
Documentation for the Single Head ROPP Capping Machine records bottle detection, cap presence, head lift and drive controls, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Bottle detection, cap presence, head lift and drive controls.
Infeed readiness: conveyor infeed with bottle support and cap placement.
Approved transfer: sealed containers discharge for inspection and labeling.
Configuration-specific: Electrical supply, compressed air, cap feeder and line-handshake requirements are listed for the selected configuration.
Configuration-specific: Torque, seal or closure acceptance criteria and the FAT method are defined after approved bottle-and-cap trials.
Cap feeder, neck support, head design, cap-size formats and rejection are engineered from samples.
Related machines
Before choosing a head configuration, read our ROPP versus screw capping selection guide to confirm the closure method, bottle-neck and cap samples, and the agreed checks for your trial.
For operator involvement and line-automation choices, read the semi-automatic versus automatic machine guide.
Frequently asked questions
The Single Head ROPP Capping Machine forms the cap thread and tamper-evident band on one bottle at a time using a controlled ROPP capping head.
The indexed station handles approved bottles or compatible vials whose neck finish, aluminum ROPP cap and support requirement match the single forming head.
The cap is placed squarely on the bottle, supported below the head and rolled against the neck finish under controlled top pressure.
The Single Head ROPP Capping Machine handles material using conveyor infeed with bottle support and cap placement.
The rated output in bottles per minute is governed by bottle arrival and stabilization, cap presentation, head descent, top-pressure and roller-forming time and finished-bottle release.
Bottle guides and neck support, cap placement parts and the ROPP head's forming rollers are set or changed from approved neck-finish and cap samples.
The bottle stop and neck support, cap-placement parts and single ROPP head with forming rollers are matched to the approved neck finish and aluminum cap.
The available control scope includes bottle detection, cap presence, head lift and drive controls. Final alarms and interlocks are documented in the approved control specification.
Cap feeder, neck support, head design, cap-size formats and rejection are engineered from samples.
It is installed after filling, stops one bottle at the forming station and releases the sealed container to cap inspection or labeling through coordinated conveyor controls.
The package can include bottle-and-cap format data, ROPP head and tooling details, closure-forming and seal test method, electrical and pneumatic diagrams, layout, manuals and capping FAT report.
Please provide the following: bottle and ROPP cap samples, neck drawing, seal requirement, output, cap feed and line layout.
