For approved bottles with compatible aluminum ROPP caps and neck finish, with infeed worm and star wheel with positive bottle support.
Machine overview

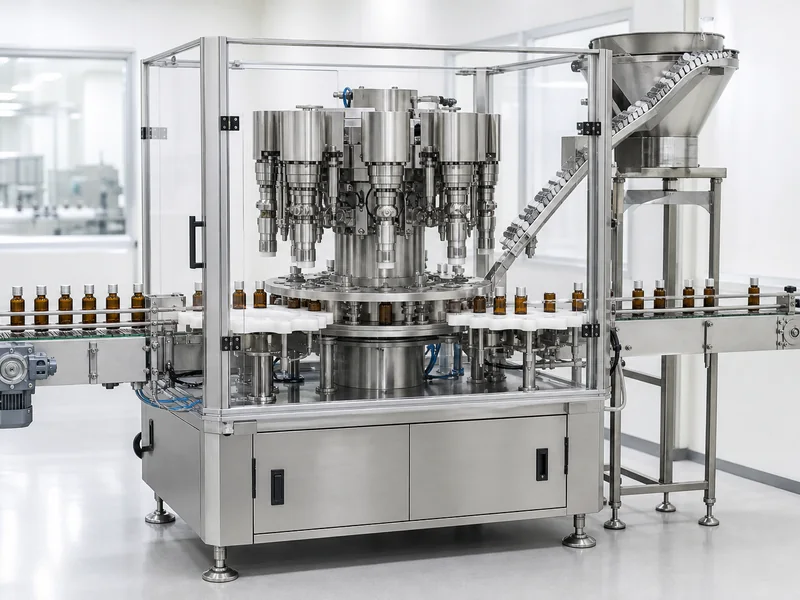

H M Pharma Machines manufactures the Multi Head ROPP Capping Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Multi Head ROPP Capping Machine uses infeed worm and star wheel with positive bottle support for container and closure handling. Its approved process completes when sealed bottles discharge through the outfeed star wheel.
Detailed engineering for the Multi Head ROPP Capping Machine aligns turret, cap-feed, head lift, bottle and cap sensing controls with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Multi Head ROPP Capping Machine is intended for approved bottles with compatible aluminum ROPP caps and neck finish; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Infeed worm and star wheel with positive bottle support.
Turret, cap-feed, head lift, bottle and cap sensing controls.
For the Multi Head ROPP Capping Machine, the materials and cleanability review follows this product-contact requirement: Closure-contact components, guides, star wheels and guarding are configured from approved bottle and cap samples.
ROPP changeover covers bottle-format parts, cap-feed components, neck support and the capping-head roller and top-pressure settings.
Sealed bottles discharge through the outfeed star wheel.
Operating process
The rotary machine pitches supported bottles beneath multiple ROPP heads, where top pressure and forming rollers shape each aluminum cap around the approved neck finish.
The infeed worm spaces incoming bottles and transfers them into star wheel pockets for positive movement around the capping turret.
An oriented aluminum cap is placed squarely on the bottle while the container and neck are supported for the forming operation.
Each rotating ROPP head applies controlled top pressure as its rollers form the cap skirt and pilfer-proof band to the bottle neck finish.
The outfeed star wheel removes sealed bottles from the turret and returns them to the conveyor for inspection or labeling.
Applications & selection
Pharmaceutical bottles and compatible vials are positively handled while multiple ROPP heads form approved aluminum closures around each neck finish.
Nutraceutical containers can use rotary ROPP sealing after cap size, pilfer-proof band, bottle support and closure integrity are trialed.
Cosmetic and personal-care packs are suitable only when their aluminum ROPP closure and container geometry match the turret tooling.
Food and beverage bottles can receive formed aluminum caps at rotary speed after neck finish, liner and seal requirements are approved.
Chemical and agrochemical containers require material, liner and closure-integrity review before ROPP forming pressure and tooling are selected.
The multi-head ROPP capper can synchronize star wheel transfer with upstream filling and downstream inspection, labeling or packing equipment.
Technical details
| Machine | Multi Head ROPP Capping Machine |
|---|---|
| Category | Capping Machines |
| Suitable For | Approved bottles with compatible aluminum ROPP caps and neck finish |
| Working Principle | Caps are placed onto positively supported bottles and each rotating head applies top pressure and forming rollers to the neck finish. |
| Infeed / Handling | Infeed worm and star wheel with positive bottle support |
| Outfeed / Transfer | Sealed bottles discharge through the outfeed star wheel |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Closure-contact components, guides, star wheels and guarding are configured from approved bottle and cap samples. |
| Control System | Turret, cap-feed, head lift, bottle and cap sensing controls |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Head count, roller profile, cap feeder, inspection and reject integration are engineered from samples. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / configuration | Rotary multi-head bottle ROPP capper. Model code, head count and tooling are stated in the configuration quotation. |
|---|---|
| Container and closure | Bottles with a compatible ROPP neck finish and aluminium closure; bottle and cap drawings or samples are required for selection. |
| Working method | Caps are placed on positively supported bottles. Each rotating head applies top pressure and forming rollers to the bottle neck finish. |
| Output (bottles/minute) | Confirmed for the selected bottle, neck finish, cap, head count, turret speed and cap-feeder capacity. A vial sealing rate does not apply to this bottle machine. |
| Closure acceptance | Closure-forming, seal and other agreed acceptance checks are defined for the supplied bottle-and-cap format and FAT method. |
| Change parts and options | Infeed worm, star wheels, bottle supports, cap path and ROPP rollers matched to the selected bottle and cap. Inspection and reject integration are quoted options. |
| Electrical power and utilities | Electrical supply, connected load, compressed air where required and line-handshake requirements are listed on the selected configuration datasheet. |
| Dimensions, conveyor height and weight | Confirmed in the machine layout and quotation for the bottle ROPP configuration. |
| Warranty | Duration, start date, coverage and exclusions are stated in the applicable bottle-machine quotation. |
| Installation and commissioning | Order-specific: confirm installation, commissioning, SAT, training, unloading, utilities, trial materials, travel and site responsibilities in the quotation. |
Need vial aluminium-cap sealing? See the separate HMWCS-250 vial sealing reference and datasheet. Its specifications apply to that vial configuration.
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved bottles with compatible aluminum ROPP caps and neck finish.
Head count, roller profile, cap feeder, inspection and reject integration are engineered from samples.
Documentation for the Multi Head ROPP Capping Machine records turret, cap-feed, head lift, bottle and cap sensing controls, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Turret, cap-feed, head lift, bottle and cap sensing controls.
Infeed readiness: infeed worm and star wheel with positive bottle support.
Approved transfer: sealed bottles discharge through the outfeed star wheel.
Configuration-specific: Electrical supply, compressed air, cap feeder and line-handshake requirements are listed for the selected configuration.
Configuration-specific: Torque, seal or closure acceptance criteria and the FAT method are defined after approved bottle-and-cap trials.
Head count, roller profile, cap feeder, inspection and reject integration are engineered from samples.
Related machines
Before choosing a head configuration, read our ROPP versus screw capping selection guide to confirm the closure method, bottle-neck and cap samples, and the agreed checks for your trial.
For the format drawings and change parts to review with the selected machine, read the machine change-parts guide.
Frequently asked questions
The Multi Head ROPP Capping Machine forms closure threads and tamper-evident bands continuously using multiple ROPP heads on a synchronized rotary turret.
Approved bottles must have a compatible ROPP neck finish and aluminum closure that can be supported, star wheel-handled and formed by the selected multi-head tooling.
Caps are placed onto positively supported bottles and each rotating head applies top pressure and forming rollers to the neck finish.
The Multi Head ROPP Capping Machine handles material using infeed worm and star wheel with positive bottle support.
The rated output in bottles per minute depends on turret pitch and speed, number of ROPP heads, cap-feeder capacity, bottle and neck stability and the time needed to form the approved closure.
The infeed worm, star wheels, bottle supports, cap chute and pickup parts and ROPP head rollers are matched to the approved neck finish and aluminum cap.
The infeed worm, star wheels, bottle supports, cap path and ROPP heads with forming rollers are tooled for the approved bottle neck and aluminum closure.
The available control scope includes turret, cap-feed, head lift, bottle and cap sensing controls. Final alarms and interlocks are documented in the approved control specification.
Head count, roller profile, cap feeder, inspection and reject integration are engineered from samples.
The capper receives filled bottles at controlled pitch and returns sealed bottles to the conveyor for cap inspection, labeling or packing, with filler and cap-feeder status interlocks.
Available documents can include bottle-and-ROPP-cap format drawings, tooling list, closure-forming and seal test method, cap-feeder, electrical and pneumatic diagrams, manuals, layout and capping FAT report.
Please provide the following: bottle and ROPP cap samples, neck drawing, seal criteria, output, head count and line arrangement.
