Rotary accumulation, feeding or collection
The Turntable is intended for approved stable bottles, vials, jars, cans and similar containers; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Integrated Pharmaceutical Material Handling System
Turntable
For approved stable bottles, vials, jars, cans and similar containers, with manual or conveyor receiving onto the rotating deck.
- Suitable for
- Approved stable bottles, vials, jars, cans and similar containers
- Method
- Rotary accumulation, feeding or collection
- Output
- Confirm line speed and load against the approved product and layout.
- Table size
- Reference: 36-inch table plate.

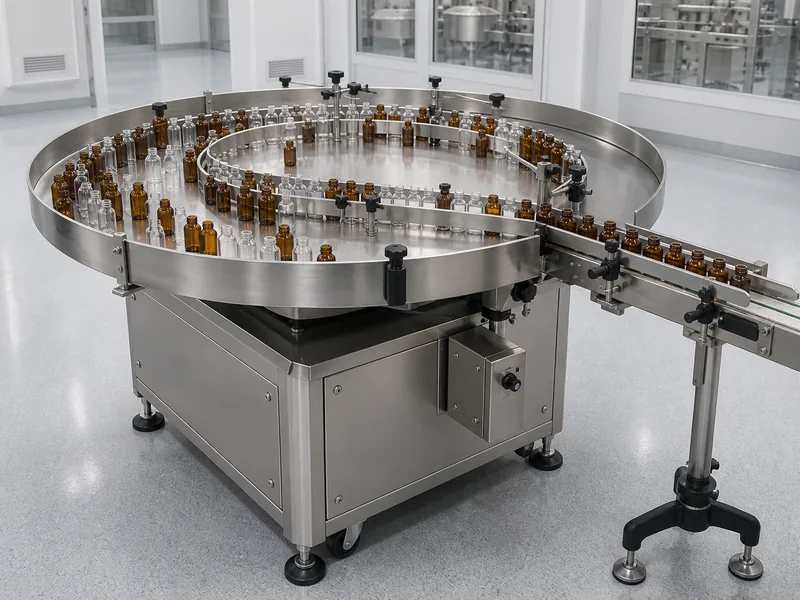

AI-generated conceptual visualization of this machine. Final configuration may vary by approved project scope.
Machine overview
Pharmaceutical Conveyor & Material Handling Manufacturer in India
H M Pharma Machines manufactures the Turntable in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Turntable uses manual or conveyor receiving onto the rotating deck for product movement. Its approved process completes when adjustable guide rail transfers containers to the connected conveyor.
Detailed engineering for the Turntable aligns variable-speed drive and guide setting matched to line demand with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
Why Choose the Turntable
02
Controlled Product Handling
Manual or conveyor receiving onto the rotating deck.
03
Application-Matched Controls
Variable-speed drive and guide setting matched to line demand.
04
GMP-Oriented Engineering
For the Turntable, the materials and cleanability review follows this product-contact requirement: Frame, belt, chain, guide and support materials are selected for the load, cleaning regime and production environment.
05
Efficient Format Changeover
Format adjustment covers guide-rail geometry, deck speed, rotation direction and the single-file discharge position at the connected conveyor.
06
Production-Line Integration
Adjustable guide rail transfers containers to the connected conveyor.
Operating process
How the Turntable Works
The turntable uses a rotating deck and adjustable guide rails to accumulate, feed or collect stable containers within a compact buffer between line operations.
Load the Rotating Deck
Containers arrive from a conveyor or are placed manually onto the approved receiving area of the deck.
Build a Controlled Buffer
The motor-driven deck keeps containers moving and temporarily absorbs differences between upstream and downstream line rates.
Guide Containers to the Exit
Adjustable rails progressively direct the accumulated containers toward the selected feed or collection path.
Release or Collect Containers
Containers leave in a guided stream onto the connected conveyor, or remain accessible for orderly manual collection when configured as an outfeed table.
Applications & selection
Built Around Your Product and Production Line
Bottle, vial and jar transfer
Bottles, vials and jars can be accumulated or fed on the rotating deck when their base is stable and the guide path matches the format.
Carton and pack movement
Cartons and packs are suitable only when their footprint, balance and surface friction allow controlled movement without tipping or scuffing.
Machine infeed and outfeed
At machine infeed or outfeed, adjustable rails direct containers between the circular deck and the connected conveyor at the approved rate.
Accumulation and line balancing
For line balancing, deck diameter, usable accumulation area and allowable container contact are selected from the production flow.
Inspection and manual packing
An outfeed turntable can provide accessible collection for inspection or manual packing when the approved product remains stable on the deck.
New and existing packaging lines
New and existing lines are accommodated by confirming rotation direction, conveyor interface, working height, guarding and available floor space.
Technical details
Turntable Specifications
Custom RangeApproved product formats
Required OutputConfigured to production target
GMP-OrientedAccessible and cleanable design
Integrated SupplyLine interfaces available
| Machine | Turntable |
|---|---|
| Category | Material Handling Systems |
| Suitable For | Approved stable bottles, vials, jars, cans and similar containers |
| Working Principle | A motor-driven circular deck rotates while adjustable guide rails direct accumulated containers into a single-file discharge or collection zone. |
| Infeed / Handling | Manual or conveyor receiving onto the rotating deck |
| Outfeed / Transfer | Adjustable guide rail transfers containers to the connected conveyor |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Frame, belt, chain, guide and support materials are selected for the load, cleaning regime and production environment. |
| Control System | Variable-speed drive and guide setting matched to line demand |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Deck diameter, rotation direction, guide geometry, height, castors and control integration are configurable. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Configuration-specific. Rated line speed, accumulation duty and allowable load are confirmed from the approved line rate and product. |
| Accuracy / Acceptance Criterion | Not applicable. This equipment does not meter product; acceptance is based on stable transfer, accumulation and line handshakes at the approved rate. |
| Electrical Power | Published reference. Maximum 0.25 HP, single-phase, 50 Hz. |
| Utilities | Configuration-specific. Drive power, speed control, sensors, line signals and compressed air only where fitted are listed in the approved scope. |
| Overall Dimensions (L × W × H) | Published reference. 36-inch table plate; body footprint 600 × 600 mm. Overall height is not stated. |
| Net / Shipping Weight | Configuration-specific. Net and packed shipping weights are stated in the approved datasheet or packing list. |
| Capacity / Format Range | Published reference. 36-inch table plate. |
| Warranty | Published reference. Manufacturing defects in stainless-steel components are covered; normal wear-and-tear parts, consumables and electrical components are excluded. The quotation does not state a warranty duration. |
| Installation / Commissioning Scope | Published reference. Pre-dispatch operational and maintenance training plus installation at buyer works; buyer arranges food and local transportation for the H M Pharma Machines engineer. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Machine Configuration, Integration and Documentation
Approved Product Format
Approved stable bottles, vials, jars, cans and similar containers.
Optional Equipment
Deck diameter, rotation direction, guide geometry, height, castors and control integration are configurable.
Documented Supply
Documentation for the Turntable records variable-speed drive and guide setting matched to line demand, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Turntable Controls and Process Monitoring
Controls, alarms and interfaces are confirmed for the ordered configuration.
Operating Sequence
Variable-speed drive and guide setting matched to line demand.
Infeed / Process Readiness
Infeed readiness: manual or conveyor receiving onto the rotating deck.
Outfeed / Transfer
Approved transfer: adjustable guide rail transfers containers to the connected conveyor.
Utilities to Confirm
Configuration-specific: Drive power, speed control, sensors, line signals and compressed air only where fitted are listed in the approved scope.
Acceptance Basis
The acceptance criterion for the Turntable is documented as follows: Not applicable. This equipment does not meter product; acceptance is based on stable transfer, accumulation and line handshakes at the approved rate.
Configured Options
Deck diameter, rotation direction, guide geometry, height, castors and control integration are configurable.
Frequently asked questions
Turntable FAQs
What does the Turntable do?
The Turntable buffers, feeds or collects containers between packaging machines in a compact circular footprint.
Which products or formats suit the Turntable?
Suitable products and formats include approved stable bottles, vials, jars, cans and similar containers. Final suitability is confirmed from approved samples, drawings and process details.
How does the Turntable perform its main operation?
A motor-driven circular deck rotates while adjustable guide rails direct accumulated containers into a single-file discharge or collection zone.
How does material enter and move through the Turntable?
The Turntable handles material using manual or conveyor receiving onto the rotating deck.
What determines the rated output of the Turntable?
Feed or collection rate depends on deck diameter and speed, container footprint and stability, guide geometry, usable accumulation area and the connected conveyor's demand.
Which container formats are suitable for the Turntable?
Approved containers must remain stable on the rotating deck; guide rails and the entry or exit path are adjusted to the container base, diameter or width and required flow direction.
Which construction details are specified for the Turntable?
Deck, guide-rail, frame, drive-cover and support materials are selected for container weight, base friction, cleaning requirements and the accumulation duty.
Which controls and interlocks are available on the Turntable?
The available control scope includes variable-speed drive and guide setting matched to line demand. Final alarms and interlocks are documented in the approved control specification.
Which optional equipment can be added to the Turntable?
Deck diameter, rotation direction, guide geometry, height, castors and control integration are configurable.
Where does the Turntable connect in a production line?
The turntable joins a conveyor at matched working height and can serve as an infeed buffer or outfeed collector, with rotation direction and product-demand control selected for the layout.
Which technical documents can accompany the Turntable?
The package can include deck and guide layout, diameter and load basis, conveyor-interface elevation, drive and electrical drawings, guarding details, operating manual and container-flow FAT checklist.
What information is needed to quote the Turntable?
Please provide the following: container samples and dimensions, required buffer, line direction and height, output and available floor space.
