For approved bottles or jars with thin, semi-viscous or viscous products, with automatic conveyor feed and container positioning.

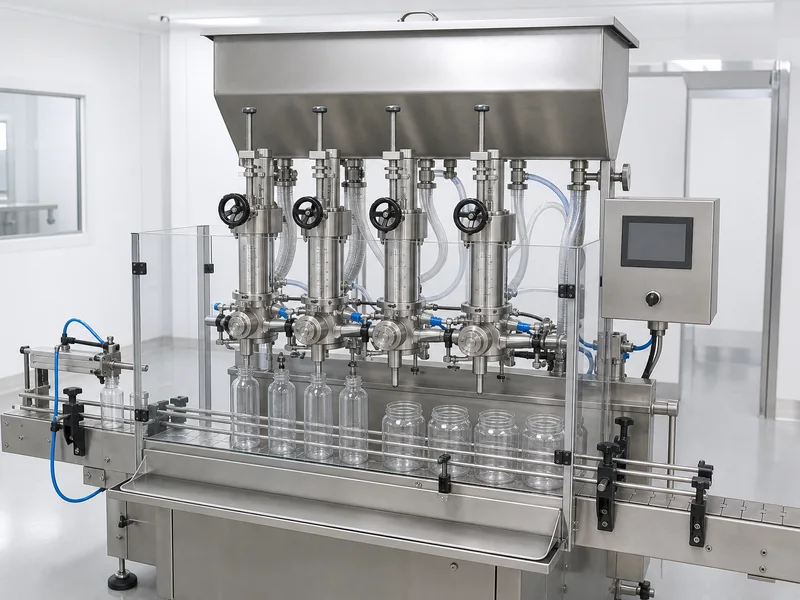

Machine overview
H M Pharma Machines manufactures the Automatic Volumetric Liquid Filling Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Automatic Volumetric Liquid Filling Machine uses automatic conveyor feed and container positioning for container and product flow. Its approved process completes when filled containers release to the next line operation.
Detailed engineering for the Automatic Volumetric Liquid Filling Machine aligns volume setting, synchronized heads and configurable anti-drip or diving-nozzle control with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Automatic Volumetric Liquid Filling Machine is intended for approved bottles or jars with thin, semi-viscous or viscous products; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Automatic conveyor feed and container positioning.
Volume setting, synchronized heads and configurable anti-drip or diving-nozzle control.
For the Automatic Volumetric Liquid Filling Machine, the materials and cleanability review follows this product-contact requirement: Product-contact materials, seals, tubing, valves and surface finish are matched to the product and cleaning method in the approved scope.
Product and container changeover covers guides, metering settings, valves, nozzles and the approved anti-drip or diving-nozzle arrangement.
Filled containers release to the next line operation.
Operating process
A calibrated piston or metering chamber draws a repeatable liquid volume and positively displaces that measured charge through the nozzle into each indexed container.
Empty containers arrive on the conveyor and are stopped in alignment beneath the filling nozzles.
The piston or metering chamber draws product from the supply according to the mechanically or electronically set fill volume.
The measured charge is directed through the product valve and nozzle into the waiting container.
When the discharge stroke is complete, the dosing cycle stops and the filled containers are released to the next line operation.
Applications & selection
Pharmaceutical liquids and syrups can be volumetrically dosed after the metering chamber, valves, nozzles and cleaning method are approved.
Nutraceutical preparations are matched to a piston or chamber size selected from fill range, viscosity, particles and required output.
Cosmetic and personal-care liquids or compatible semi-viscous products can use positive-displacement filling with application-matched seals and nozzles.
Food and beverage products require hygienic contact parts and a volumetric cycle developed for the formulation's flow and foaming behavior.
Oils, chemicals and agrochemicals are handled only after confirming wetted-material, valve, seal and cleaning compatibility.
The volumetric filler can work independently or release filled containers in sequence to capping, sealing, labeling and packing equipment.
Technical details
| Machine | Automatic Volumetric Liquid Filling Machine |
|---|---|
| Category | Liquid Filling Machines |
| Suitable For | Approved bottles or jars with thin, semi-viscous or viscous products |
| Working Principle | A calibrated piston or metering chamber draws a defined volume and discharges it through the filling nozzle into an indexed container. |
| Infeed / Handling | Automatic conveyor feed and container positioning |
| Outfeed / Transfer | Filled containers release to the next line operation |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Product-contact materials, seals, tubing, valves and surface finish are matched to the product and cleaning method in the approved scope. |
| Control System | Volume setting, synchronized heads and configurable anti-drip or diving-nozzle control |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Metering chamber, valves, nozzles, number of heads and cleaning arrangement are selected for the product. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. 24 bottles per minute, depending on fill volume. |
| Accuracy / Acceptance Criterion | Published reference. ±1% filling accuracy. |
| Electrical Power | Published reference. 230 V, single-phase, 50 Hz. |
| Utilities | Published reference. Pneumatic bottle-stopper system stated in the quoted configuration. |
| Overall Dimensions (L × W × H) | Published reference. 1200 × 800 × 2000 mm (L × W × H); conveyor height adjustable from 800 to 900 mm. |
| Net / Shipping Weight | Published reference. Approximately 300 kg net / 500 kg gross. |
| Capacity / Format Range | Published reference. 10–1000 mL with change parts; included 100–250 mL syringe set; bottles 22–80 mm diameter and 55–200 mm height. |
| Warranty | Published reference. Manufacturing defects in stainless-steel components are covered; normal wear-and-tear parts, consumables and electrical components are excluded. The quotation does not state a warranty duration. |
| Installation / Commissioning Scope | Published reference. Pre-dispatch operational and maintenance training plus installation at buyer works; buyer arranges food and local transportation for the H M Pharma Machines engineer. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved bottles or jars with thin, semi-viscous or viscous products.
Metering chamber, valves, nozzles, number of heads and cleaning arrangement are selected for the product.
Documentation for the Automatic Volumetric Liquid Filling Machine records volume setting, synchronized heads and configurable anti-drip or diving-nozzle control, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Volume setting, synchronized heads and configurable anti-drip or diving-nozzle control.
Infeed readiness: automatic conveyor feed and container positioning.
Approved transfer: filled containers release to the next line operation.
Published reference: Pneumatic bottle-stopper system stated in the quoted configuration.
Published reference: ±1% filling accuracy.
Metering chamber, valves, nozzles, number of heads and cleaning arrangement are selected for the product.
Related machines
For dosing-method selection using product and container samples, read the liquid filling machine selection guide.
Frequently asked questions
The Automatic Volumetric Liquid Filling Machine dispenses a repeatable preset volume of compatible liquid into containers using positive-displacement metering.
Suitable products and formats include approved bottles or jars with thin, semi-viscous or viscous products. Final suitability is confirmed from approved samples, drawings and process details.
A calibrated piston or metering chamber draws a defined volume and discharges it through the filling nozzle into an indexed container.
The Automatic Volumetric Liquid Filling Machine handles material using automatic conveyor feed and container positioning.
The rated output in containers per minute depends on fill volume, product viscosity and suction behavior, metering-chamber size, number of heads, discharge time and container indexing.
The piston or metering chamber, valves, seals, nozzle, volume setting and container guides are selected and calibrated with approved product and pack samples.
Metering cylinders or chambers, pistons, valves, seals, manifolds and nozzles are specified for product contact, with frame and guard materials listed separately in the approved scope.
The available control scope includes volume setting, synchronized heads and configurable anti-drip or diving-nozzle control. Final alarms and interlocks are documented in the approved control specification.
Metering chamber, valves, nozzles, number of heads and cleaning arrangement are selected for the product.
The filler receives product from the approved tank or supply system, doses indexed containers and releases them to closure equipment with product-level, bottle-presence and line-status signals.
The package can include metering and wetted-parts data, calibration and changeover instructions, piping and utility diagrams, electrical drawings, product-contact certificates, layout, manuals and volumetric-filling FAT report.
Please provide the following: product viscosity and particles, fill-volume range, container samples, output, accuracy and cleaning method.
Contact us
Share your application and required capacity for a quotation.
