This guide is for buyers preparing a technical request for a glass ampoule liquid filler with flame sealing. It focuses on the information needed to review one process configuration. For a wider comparison of bottle dosing technologies, use the liquid filling machine selection guide; for container preparation, use the separate ampoule washing machine range.

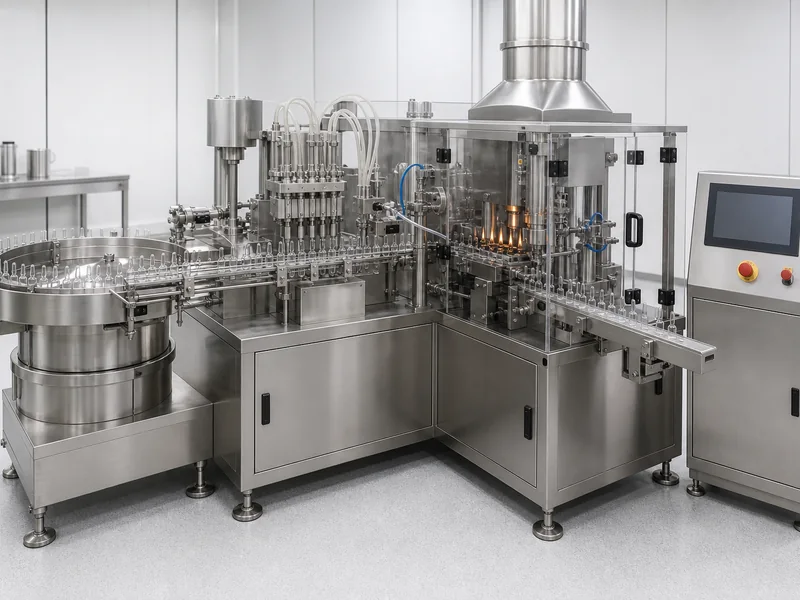

The published ampoule filling and sealing product page describes open glass ampoules held upright for liquid dosing, followed by regulated neck preheating and flame sealing. Model, fill-volume range and output are configuration-specific. H M Pharma Machines supplies within India from Ahmedabad; the approved quotation and datasheet define the machine supplied.
Specify Every Ampoule and the Actual Dose
Send a dimensioned drawing or sample for every ampoule you intend to run. Include the body and neck dimensions, opening, overall shape and required seal profile. A photograph can support the discussion, but it should accompany the dimensions or sample used to approve the format. Guides, feeding parts, filling needles and burner positions are matched to the approved ampoule.
State the intended liquid dose separately from the ampoule's nominal capacity. Describe all required doses and which ampoule belongs to each one. This gives the supplier a clear basis for reviewing filling settings and change parts, instead of assuming that one container name or volume identifies the complete application. Ask the proposal to list the approved formats and dose range explicitly.
Review the Liquid with the Sealing Process
Identify the actual liquid and its filling conditions. Share relevant viscosity, temperature and foaming behaviour, along with the proposed cleaning method and product-contact requirements. Agree how representative liquid and ampoule samples will be provided for review or trials. Filling tolerance should be assessed against the approved product, dose, ampoule and operating conditions.
The published machine combines dosing with a heated flame-sealing station. Its product page calls for compatibility and flammability review for oils, chemicals and agrochemicals before exposure to that process. Describe these characteristics at the requirement stage. For other formulations, state any thermal-exposure or seal-integrity requirements that your project team must approve.
Keep trial objectives specific: which formats and doses need review, what constitutes an acceptable fill, which seal profile is required and how inspection will be performed. Ask who supplies the trial liquid, ampoules and other materials. These questions help define the review; they do not replace your site's process approval.
Confirm Utilities and Ordered Options
Send the available electrical supply and the gas and burner utilities needed for review. Ask the supplier to issue the selected configuration's utility list and burner/gas schematic. Where compressed air, product feed, temperature control, gas flushing, vacuum or cleaning interfaces apply, their requirements belong in that same approved scope.
Pre- and post-gas flushing, filling-head arrangement, seal method and inspection integration are configurable on the published product. State which functions you require and ask the quotation to identify the equipment, controls and connections included for each. Burner safety controls, alarms and interlocks should be documented for the ordered machine. This makes utility planning and option comparison concrete.
Build a Clear Quotation Request
Use the following checklist as a project brief. Mark a detail as pending when it is still being decided, and identify who will confirm it before the order. Send drawings or sample references alongside the written requirement.
| Information to Send | Decision to Confirm in the Proposal |
|---|---|
| Ampoule drawings and samples | Every approved body/neck format, seal profile, guides, filling needles and change parts. |
| Liquid and intended doses | Approved filling conditions, product-contact path, dose range, cleaning method and trial scope. |
| Required ampoules per minute | Quoted output for the actual liquid, dose, ampoule and filling-and-sealing cycle. |
| Available utilities | Electrical load list, gas/burner services and other interfaces applicable to the chosen configuration. |
| Gas flushing and inspection needs | Included options, controls, inspection interfaces and agreed acceptance requirements. |
| Line drawings and Indian site location | Layout, infeed/outfeed connections, installation scope and site responsibilities. |
| Documentation and acceptance plan | Agreed FAT method, required records, manuals, drawings and commissioning/training scope. |
Agree Trial and FAT Acceptance
Required output is stated in ampoules per minute, but the filling and sealing operations must support that rate together. The published product identifies ampoule size, fill volume, filling-needle arrangement, dosing time, glass-neck heating and the approved flame-sealing cycle as output factors. Ask the quotation to state the operating conditions used for its proposed rate.
Agree filling tolerance, seal requirements, inspection scope and the factory acceptance test (FAT) sampling method before approving the machine. Identify the formats, dose settings and product conditions to be demonstrated, the records required and how an observation will be judged. If leak testing or other inspection is needed, define whether it is supplied equipment, a downstream interface or a separate project responsibility.
The documentation package can include ampoule-format drawings, dosing and calibration instructions, burner/gas schematic, utility and electrical drawings, manuals, layout and filling-and-sealing FAT records. List what your purchasing, engineering and quality teams need. Any sterile or aseptic production requirements should be stated separately with the relevant process, environment and qualification responsibilities agreed for the project.
Define Line and Commercial Responsibilities
Decide whether you need a standalone machine or an integrated ampoule line. Review the ampoule washer and ampoule labeler as separate equipment selections. Agree washing and any required sterilization or depyrogenation before filling, followed by the specified inspection, labeling or collection arrangement. Include transfer heights, available space and the connected equipment in the layout review.
For a comparable quotation, ask each proposal to identify the machine configuration, approved formats, options, documentation and acceptance scope. Installation, commissioning, operator training, unloading, positioning, site utilities, trial materials and travel responsibilities follow the approved order. Record the warranty terms and agreed project schedule in the commercial documents. A price comparison becomes more useful when those inclusions and responsibilities are clear.
H M Pharma Machines has operated from Ahmedabad since 2012. Delivery and service are coordinated within India from this location. Review the documentation and acceptance scope and India delivery and service information when preparing your request.
Buyer Questions
What information should I send for an ampoule filling and sealing quotation?
Send every ampoule sample or dimensioned drawing, the liquid and intended fill volume, required ampoules per minute, available gas and burner utilities, seal requirements, inspection scope and installation location in India.
Which ampoule sizes and output are covered?
The approved ampoule and fill-volume ranges, machine configuration and output are defined in the quotation and machine datasheet. Selection must use the actual ampoule formats, liquid, dose and filling-and-sealing conditions.
Is pre- or post-gas flushing included as standard?
Pre- and post-gas flushing are configurable options on the published machine. Their inclusion, gas requirements and controls must be stated in the approved quotation.
How should filling and sealing acceptance be agreed?
Agree filling tolerance, required seal profile, inspection scope, trial conditions and the FAT sampling method for the actual ampoule and liquid. Record these requirements in the approved technical and commercial scope.
Can documentation, installation and training be included?
The quotation defines the included documentation, installation, commissioning and operator training, together with customer-side utilities, trial materials, site work and travel responsibilities.
Send Your Ampoule Requirement
Share your ampoule drawings or samples, liquid and dose, required output, utilities, seal and inspection needs, and installation location in India. Our Ahmedabad team will review the application against the requested scope.
