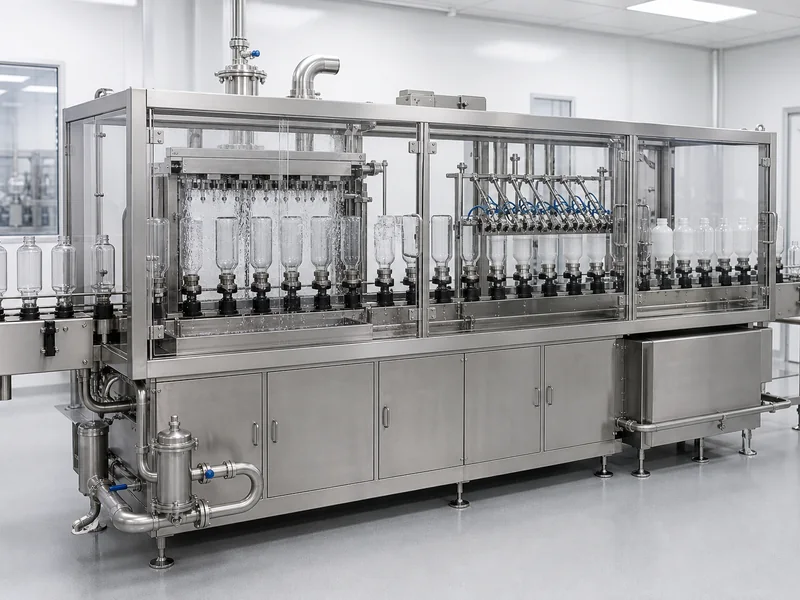

The Automatic Inverting Type Bottle Washing Machine is designed for automatic inversion, internal rinsing, draining and air blowing of approved 50 mL–1 L bottles. The machine is available in 24, 36, 48, 60 and 72 BPM configurations for glass, PET, HDPE and PP containers, excluding oval formats.
Machine overview
H M Pharma Machines manufactures the Automatic Inverting Type Bottle Washing Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Automatic Inverting Type Bottle Washing Machine uses automatic infeed, bottle gripping and inversion for container flow. Its approved process completes when re-inverted bottles discharge upright to downstream equipment.
Detailed engineering for the Automatic Inverting Type Bottle Washing Machine aligns synchronized rinse valves, air supply and conveyor controls with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Discuss a demonstration
Share your container and application to discuss an appropriate machine demonstration. Availability and scope are confirmed by our team.
Configuration summary
Selection of the Automatic Inverting Type Bottle Washing Machine starts with approved glass, PET, HDPE and PP bottles; oval bottles are not suitable. Required output, handling method and automation level are then assessed as one configuration.
Why this machine
The Automatic Inverting Type Bottle Washing Machine is intended for approved glass, PET, HDPE and PP bottles; oval bottles are not suitable; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Automatic infeed, bottle gripping and inversion.
Synchronized rinse valves, air supply and conveyor controls.
For the Automatic Inverting Type Bottle Washing Machine, the materials and cleanability review follows this product-contact requirement: Machine-frame and wetted materials are selected based on the approved wash media, hygiene requirement and approved order scope.
Bottle changeover covers the infeed guides, gripping and inversion parts, neck alignment and wash-nozzle positions required for the approved format.
Re-inverted bottles discharge upright to downstream equipment.
Operating process
Empty bottles are automatically gripped, inverted over the washing nozzles, rinsed and air-blown in the approved sequence, then returned upright for discharge.
Empty bottles arrive on the infeed conveyor and the handling mechanism secures each bottle for inversion.
Each gripped bottle is turned mouth-down and aligned with the internal washing nozzle.
The approved wash media are directed inside the inverted bottle, followed by compressed air to clear residual rinse liquid.
Washed bottles are turned upright, released onto the conveyor and transferred to downstream equipment.
Applications & selection
Pharmaceutical bottles are inverted over the internal nozzles for the approved rinse and air-blow sequence before sterile or non-sterile filling, as applicable.
Nutraceutical bottle lines can use the washer for compatible containers after the required water quality, wash time and drainage sequence are defined.
Cosmetic and personal-care containers receive an internal rinse suited to the approved bottle material and the cleanliness requirement of the filling process.
For food and beverage bottles, wash-media quality and contact time are selected from the container condition and the site's hygiene procedure.
Chemical and allied containers are accepted only after confirming bottle compatibility with the selected wash media, air blow and wetted materials.
On new or upgraded lines, the washer's infeed, discharge, conveyor level and machine interlocks are coordinated with upstream and downstream equipment.
Technical details
| Machine | Automatic Inverting Type Bottle Washing Machine |
|---|---|
| Category | Washing & Cleaning Machines |
| Suitable For | Approved glass, PET, HDPE and PP bottles; oval bottles are not suitable |
| Working Principle | Bottles are gripped and inverted over aligned nozzles for the approved water wash followed by compressed-air blow, then returned upright. |
| Infeed / Handling | Automatic infeed, bottle gripping and inversion |
| Outfeed / Transfer | Re-inverted bottles discharge upright to downstream equipment |
| Machine Construction | GMP-oriented construction with materials defined in the approved scope |
|---|---|
| Contact Materials | Machine-frame and wetted materials are selected based on the approved wash media, hygiene requirement and approved order scope. |
| Control System | Synchronized rinse valves, air supply and conveyor controls |
| Automation Standard | Delta PLC, 7-inch Delta HMI, Delta drive/VFD and Delta servo |
| Compressed Air | 6 bar |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | External wash, water recovery, number of stations and additional media are project-configurable. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. 24 / 36 / 48 / 60 / 72 bottles per minute (BPM), subject to the approved bottle and wash cycle. |
| Accuracy / Acceptance Criterion | Not applicable. This is not a dosing or label-placement function; acceptance is based on stable container handling, the approved wash sequence and the FAT protocol. |
| Electrical Power | Published reference. 220 V AC, single-phase, 50 Hz; maximum connected load 3 HP. |
| Utilities | Published reference. Electrical supply as stated; compressed air at 6 bar; wash-water quality, flow and drainage are confirmed for the approved process. |
| Overall Dimensions (L × W × H) | Published reference. Approximately 8 × 4 × 5 ft (L × W × H). |
| Net / Shipping Weight | Published reference. Approximately 300 kg net. |
| Capacity / Format Range | Published reference. Approved 50 mL–1 L glass, PET, HDPE and PP bottles; oval bottles are not suitable. |
| Warranty | Published reference. 1 year; commencement, coverage and exclusions are defined in the approved order. |
| Installation / Commissioning Scope | Published reference. Installation and commissioning are available; the exact included work and customer responsibilities are defined in the approved order. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Water consumption varies with the selected machine model, operating speed, bottle size and approved washing cycle. The project-specific requirement is confirmed for the selected configuration and agreed operating conditions.
Where recirculation is included, recirculated-water flow and fresh-water consumption are specified separately during technical review, using the water grades included in the approved configuration.
Options & project scope
Approved glass, PET, HDPE and PP bottles, excluding oval bottle formats.
External wash, water recovery, number of stations and additional media are project-configurable.
Documentation for the Automatic Inverting Type Bottle Washing Machine records synchronized rinse valves, air supply and conveyor controls, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Synchronized rinse valves, air supply and conveyor controls.
Infeed readiness: automatic infeed, bottle gripping and inversion.
Approved transfer: re-inverted bottles discharge upright to downstream equipment.
Published reference: Electrical supply as stated; compressed air at 6 bar; wash-water quality, flow and drainage are confirmed for the approved process.
The acceptance criterion for the Automatic Inverting Type Bottle Washing Machine is documented as follows: Not applicable. This is not a dosing or label-placement function; acceptance is based on stable container handling, the approved wash sequence and the FAT protocol.
External wash, water recovery, number of stations and additional media are project-configurable.
Related machines
For the wash-method and line-layout comparison, read the bottle washing machine selection guide.
Frequently asked questions
The Automatic Inverting Type Bottle Washing Machine handles 50 mL–1 L glass, PET, HDPE and PP bottles (excluding oval formats) and is available in 24, 36, 48, 60 or 72 BPM configurations.
The published range is 50 mL–1 L glass, PET, HDPE and PP bottles with matched handling parts; oval bottles are excluded from the standard format range.
Bottles are gripped and inverted over aligned nozzles for the approved water wash followed by compressed-air blow, then returned upright.
The Automatic Inverting Type Bottle Washing Machine handles material using automatic infeed, bottle gripping and inversion.
Published reference models are rated at 24, 36, 48, 60 or 72 bottles per minute, subject to the approved bottle, wash sequence and utility conditions.
The published range is 50 mL–1 L glass, PET, HDPE and PP bottles with matched handling parts; oval bottles are not suitable for the standard inversion arrangement.
Bottle-handling and wash-zone materials are selected for the approved containers and wash media; nozzles, piping, seals, frame and guards are identified in the final material schedule.
The available control scope includes synchronized rinse valves, air supply and conveyor controls. Final alarms and interlocks are documented in the approved control specification.
External wash, water recovery, number of stations and additional media are project-configurable.
The washer receives empty bottles, inverts them for the approved rinse and air blow, then returns them upright for direct transfer to a filling line at the agreed conveyor height.
Available records can cover the wash-sequence matrix, water and air utility schedule, piping and pneumatic diagrams, electrical drawings, general arrangement, manuals and bottle-washing FAT results.
Please provide the following: bottle samples, format range, water quality, air quality, output, drainage and downstream interface.
The published control scope lists Delta PLC, 7-inch HMI, drive or VFD and servo components, with a 1-year warranty; installation and commissioning details are fixed in the approved order.
