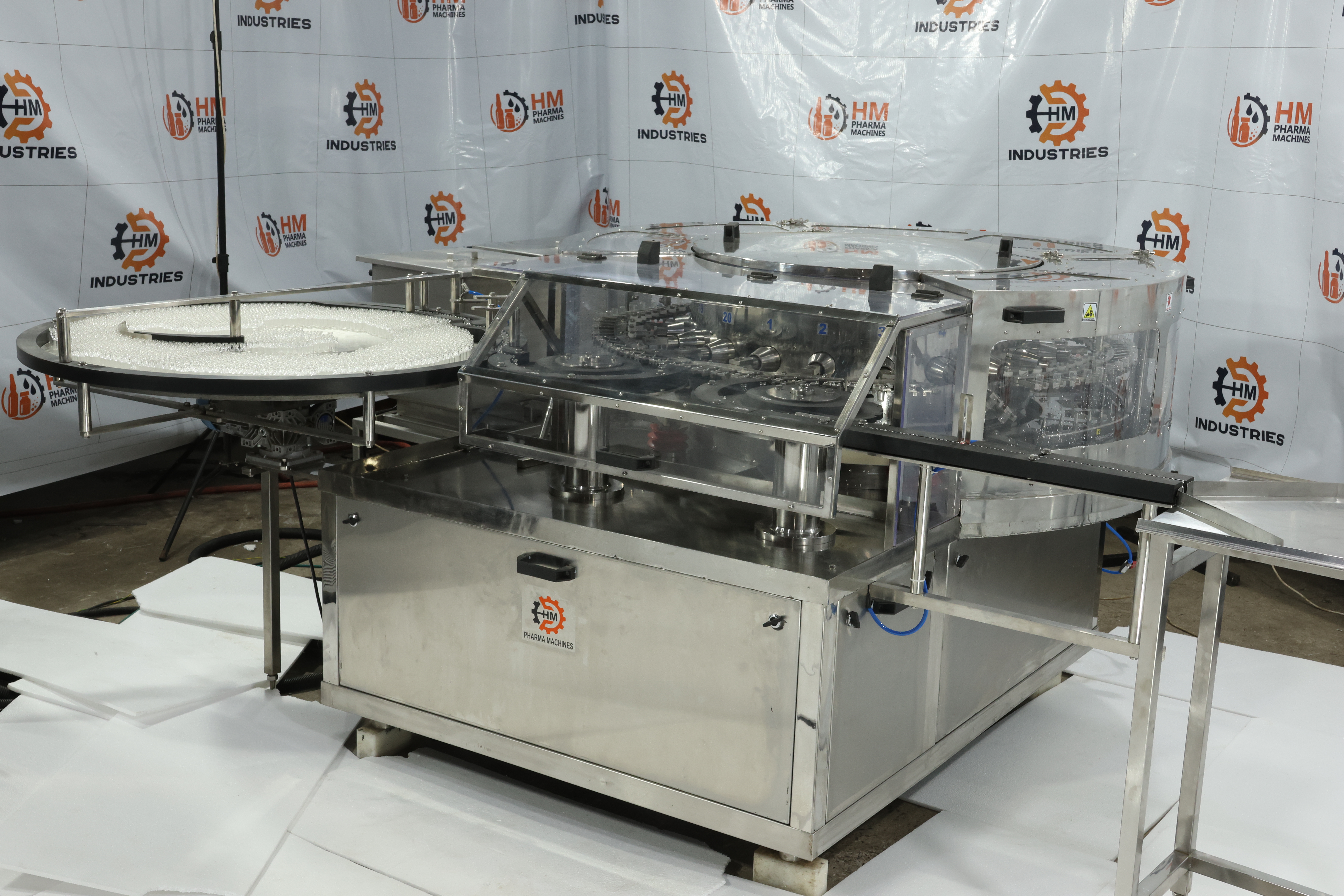

Rotary Gripper Bottle Washing Machine
Secure rotary-gripper handling with six internal and two external washing stations.
Range50–500 mL
OutputUp to 80 BPM
Wash cycle6 internal + 2 external
Tanks2 × 40 L
Pharmaceutical container washing systems
Bottle Washing Machine Manufacturer in India
Compare rotary gripper, linear tunnel, semi-automatic rotary and automatic inverting bottle washing machines for approved glass, PET, HDPE and PP container applications.
Machine selection
Select the Right Bottle Washing Platform
H M Pharma Machines manufactures bottle washing and cleaning equipment in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied packaging applications.
The correct platform depends on the approved bottle format, material, production output, washing media, automation requirement and downstream line arrangement. Rotary gripper and linear tunnel machines have defined ranges and outputs, while semi-automatic rotary and automatic inverting systems are configured based on approved samples and project requirements.
Final suitability is confirmed from bottle samples or drawings, required wash sequence, utility details and the complete user requirement specification.
Available machines
Automatic and Semi-Automatic Bottle Washing Machines
Open each machine page for its complete wash sequence, construction, utilities, options and project documentation. To compare other container formats, browse All Washing & Cleaning Machines.
View Full Details
Linear Tunnel Type Bottle Washing Machine
Wire-woven infeed, mechanical-cam handling and HDPE pockets for linear bottle washing.
Range50 mL–1 L
Models120–240 BPM
Wash cycle5 internal + 2 external
MaterialsGlass, PET & HDPE
Semi-Automatic Rotary Bottle Washing Machine
Operator-assisted loading with indexed rotary washing for small and medium production batches.
Range50 mL–1 L; oval not suitable
ModelsHMSBWM-32 / HMSBWM-64
Output60 BPM / 120 BPM
WeightApprox. 300 kg
Automatic Inverting Type Bottle Washing Machine
Automatic gripping, bottle inversion, aligned-nozzle rinsing, air blowing and upright discharge.
Range50 mL–1 L; oval not suitable
Output24 / 36 / 48 / 60 / 72 BPM
Power220 V / 50 Hz / single-phase
WeightApprox. 300 kg
Side-by-side comparison
Bottle Washing Machine Comparison
Use this as an initial selection guide. Final machine specifications are confirmed against approved samples and process requirements.
| Selection point | Rotary Gripper | Linear Tunnel | Semi-Automatic Rotary | Automatic Inverting |
|---|---|---|---|---|
| Range | 50–500 mL | 50 mL–1 L | 50 mL–1 L | 50 mL–1 L |
| Model & published output | Configuration-specific model Up to 80 BPM, depending on the bottle and application | HMLBWM-120 / 150 / 180 / 240 120 / 150 / 180 / 240 BPM respectively | HMSBWM-32 — 60 BPM (32 holders) HMSBWM-64 — 120 BPM (64 holders) | Configuration-specific model 24 / 36 / 48 / 60 / 72 BPM |
| Material & format limits | Approved glass, PET, HDPE and PP formats within the range shown above; oval bottles are not suitable. Send samples or drawings to confirm the handling parts for every bottle. | |||
| Handling | Rotary grippers | Belt, cams and HDPE pockets | Manual loading into holders | Automatic gripping and inversion |
| Wash arrangement | 6 internal + 2 external | 5 internal + 2 external | Configurable water and air stages | Water rinse followed by air blow |
| Selection point | Review for approved 50–500 mL formats and the defined six-stage internal wash. | The only listed platform here with a 240 BPM model; confirm pocket handling and line transfer. | Review operator loading and unloading alongside the 32- or 64-holder model. | Review the automatic inversion, water-rinse and air-blow sequence; external wash is configuration-dependent. |
| Reference conditions | BPM means bottles per minute. Outputs are subject to the approved bottle and wash cycle. A 1 L requirement narrows this comparison to linear tunnel, semi-automatic rotary or automatic inverting; the rotary gripper range ends at 500 mL. | |||
Water Consumption
Water consumption varies with the selected machine model, operating speed, bottle size and approved washing cycle. The project-specific requirement is confirmed for the selected configuration and agreed operating conditions.
Where recirculation is included, recirculated-water flow and fresh-water consumption are specified separately during technical review, using the water grades included in the approved configuration.
Selection guide
Information Required for Model Selection
Use the pharmaceutical bottle washing selection guide for the full comparison and project checklist. Start the quotation with these four decisions.
Preparing for the factory trial? Use our washing machine FAT checklist to agree samples, wash conditions, output checks and dispatch records.
Connecting the washer to a complete packaging line? Read our bottle washing, filling, capping and labeling line checklist to review bottle transfer, drainage, matched output and the condition required at each machine.
01
Check the Format Boundary
List bottle material, volume, body shape and neck drawing. The four published ranges exclude oval bottles; a volume match alone does not confirm handling suitability.
02
Match Output and Loading
State required BPM for each bottle. For semi-automatic models, include the proposed loading and unloading arrangement when reviewing the quoted output.
03
Specify Internal and External Wash
Identify the required water grades and air quality. Confirm external washing and optional services separately instead of assuming identical scope across all four types.
04
Plan the Site Connections
Provide transfer height and direction, available floor space and drainage. Request the selected model's electrical load, water and air schedule and approved layout.
Process options
Bottle Handling, Washing Media and Integration
The approved project scope combines the selected handling platform with suitable utilities, controls and line interfaces.
Wet Washing Media
Depending on the machine, the wash process can use recirculated water, Purified or demineralized water and filtered compressed air.
Controls & Protection
Pressure, tank-level, handling and drive conditions are monitored according to the selected machine and approved control philosophy.
Complete Line Supply
Integration with filling, capping, labeling, inspection and conveying equipment can be reviewed against the line layout.
Dry-cleaning alternative
Need an Automatic Air Jet Bottle Cleaning Machine?
For applications requiring filtered-air cleaning instead of a wet washing cycle, review the automatic air jet bottle cleaning machine.
Project support
Bottle Washer Installation and After-Sales Support
Before commissioning, review the chosen washer’s water, air, drainage and transfer connections against your site layout. See our installation, troubleshooting and spare-parts support for the available scope. For a bottle-format change, send the machine details and bottle samples or drawings so we can review compatible bottle handling parts.
Frequently asked questions
Bottle Washing Machine FAQs
Which bottle washing machine should I select?
Selection depends on the approved bottle material and size, required bottles-per-minute output, wash sequence, automation level and line-integration requirement.
What bottle ranges are available?
The rotary gripper machine covers approved 50–500 mL bottles. The linear tunnel, semi-automatic rotary and automatic inverting machines cover approved 50 mL–1 L glass, PET, HDPE and PP formats; oval bottles are not suitable.
What outputs are available?
The rotary gripper machine provides up to 80 BPM. Linear HMLBWM models provide 120, 150, 180 or 240 BPM. HMSBWM semi-automatic models provide 60 or 120 BPM, and automatic inverting models provide 24, 36, 48, 60 or 72 BPM.
Which washing media can the bottle-washing machines use?
Depending on the selected platform, the approved washing cycle can use recirculated water, Purified or demineralized water and filtered compressed air.
Can the washer be integrated with filling and capping machines?
Yes. Standalone supply or integration with approved filling, capping, labeling and conveying equipment can be reviewed against the complete line layout.
Ahmedabad-based team, nationwide support
Bottle Washing Machines: Delivery and Service Across India
H M Pharma Machines provides delivery and service for bottle washing machines across India from its only facility in Ahmedabad, Gujarat. For bottle washing machine projects in Rajasthan, delivery, installation and service arrangements are coordinated from Ahmedabad according to the project scope and site location. Share your state, city and PIN code along with the machine requirement to confirm delivery, installation and service arrangements. Our India delivery and service coverage explains destination planning and support coordinated from Ahmedabad.
Need Help Selecting a Bottle Washing Machine?
Send your bottle samples, target output, wash process and line layout for technical review.
