For approved round bottles, vials or ampoules with compatible self-adhesive labels, with positive infeed worm and star wheel container control.
Machine overview

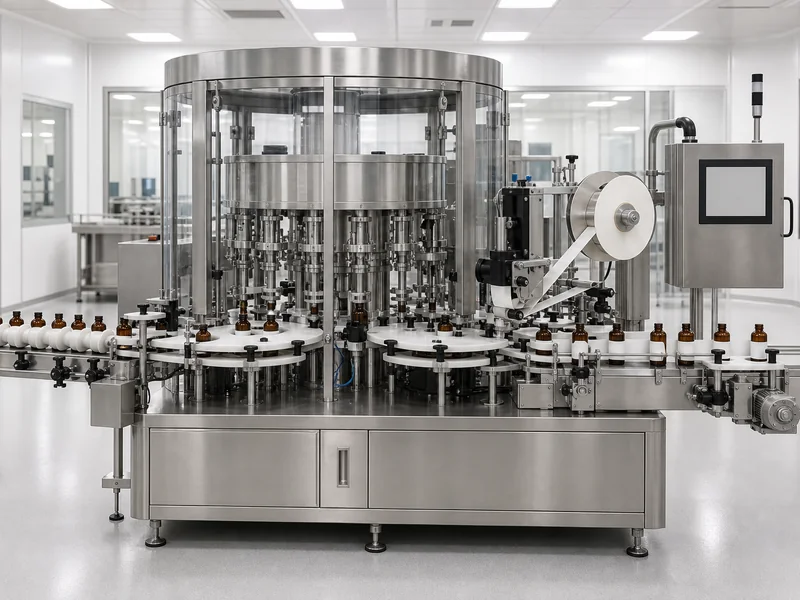

H M Pharma Machines manufactures the Rotary Sticker Labeling Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Rotary Sticker Labeling Machine uses positive infeed worm and star wheel container control for container or label-web handling. Its approved process completes when outfeed star wheel returns labeled containers to the line.
Detailed engineering for the Rotary Sticker Labeling Machine aligns servo label dispensing, turret synchronization, product and label sensing with HMI recipes with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Rotary Sticker Labeling Machine is intended for approved round bottles, vials or ampoules with compatible self-adhesive labels; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Positive infeed worm and star wheel container control.
Servo label dispensing, turret synchronization, product and label sensing with HMI recipes.
For the Rotary Sticker Labeling Machine, the materials and cleanability review follows this product-contact requirement: Container guides, label-contact rollers, guards and conveyor materials are selected from approved product and label samples.
Container changeover covers the infeed worm, star wheels, turret parts, label station, sensor positions and the approved label recipe.
Outfeed star wheel returns labeled containers to the line.
Operating process
Containers are positively pitched into a rotary turret, synchronized with the label dispenser and carried through label application before star wheel discharge.
The infeed worm establishes container spacing and the star wheel transfers each bottle, vial or ampoule into its turret position.
The turret maintains positive container pitch while product and label sensors synchronize the selected label station with each position.
The servo label head advances one self-adhesive label at the correct turret position, and the configured contact system completes application to the container.
The outfeed star wheel removes labeled containers from the turret and places them onto the downstream conveyor in sequence.
Applications & selection
Pharmaceutical bottles, vials or ampoules are positively pitched through the turret for synchronized label dispensing at the approved position.
Nutraceutical bottles and jars can be rotary labeled after container geometry, label size, roll specification and application method are trialed.
Cosmetic and personal-care packs are accepted when their shape and surface can be stabilized through the selected rotary labeling station.
Food and beverage containers can receive pressure-sensitive labels at high throughput with tooling matched to the approved pack.
Chemical and agrochemical packs require label stock, adhesive, container surface and storage-condition compatibility before production.
The rotary labeler can run independently or synchronize star wheel transfers with upstream closure and downstream coding, inspection or packing equipment.
Technical details
| Machine | Rotary Sticker Labeling Machine |
|---|---|
| Category | Labeling Machines |
| Suitable For | Approved round bottles, vials or ampoules with compatible self-adhesive labels |
| Working Principle | An infeed worm and star wheel pitch containers into a rotary turret, where a synchronized dispenser applies the label before outfeed transfer. |
| Infeed / Handling | Positive infeed worm and star wheel container control |
| Outfeed / Transfer | Outfeed star wheel returns labeled containers to the line |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Container guides, label-contact rollers, guards and conveyor materials are selected from approved product and label samples. |
| Control System | Servo label dispensing, turret synchronization, product and label sensing with HMI recipes |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Turret pitch, format parts, number of label stations, coding, vision and reject are configurable. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Labeling arrangement | Rotary turret with synchronized self-adhesive label dispensing; the quotation identifies turret pitch, label stations and the assigned model. |
|---|---|
| Container and label formats | Approve round bottle, vial or ampoule dimensions, label position and size, label stock, roll diameter and core from samples. |
| Infeed and outfeed handling | An infeed worm and star wheel establish container pitch; the outfeed star wheel returns labeled containers to the line. |
| Output assessment | Agree containers per minute for the selected turret, label stations, web speed, format tooling and stable container transfer. |
| Label placement and FAT | Define placement tolerance and the trial plan using actual containers and labels at the agreed turret speed and running conditions. |
| Published control reference | Delta PLC, 4-inch Delta HMI and Delta drive/VFD; Delta servo is used for the servo label-dispensing arrangement. |
| Electrical and interface services | The load list states supply and connected load; compressed air, coding, vision and reject services apply only to the fitted scope. |
| Format changeover | List worm and star wheel sets, turret-contact parts and label-head settings required for each approved container and label. |
| Footprint and access | The GA drawing defines overall dimensions, conveyor height, turret and roll-change access and upstream/downstream clearances. |
| Net and shipping weight | The final datasheet and packing list state machine and packed weights for the selected turret and label-station arrangement. |
| Warranty | Published reference: 1 year. Commencement, coverage and exclusions follow the approved order terms. |
| Installation and commissioning | Available under the approved order; define turret and line synchronization, format trials, placement checks, training and site responsibilities. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved round bottles, vials or ampoules with compatible self-adhesive labels.
Turret pitch, format parts, number of label stations, coding, vision and reject are configurable.
Documentation for the Rotary Sticker Labeling Machine records servo label dispensing, turret synchronization, product and label sensing with HMI recipes, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Servo label dispensing, turret synchronization, product and label sensing with HMI recipes.
Infeed readiness: positive infeed worm and star wheel container control.
Approved transfer: outfeed star wheel returns labeled containers to the line.
Configuration-specific: Electrical supply is required; compressed air is listed only for configured actuators, with coding, vision and data interfaces stated separately.
Configuration-specific: Label-placement tolerance and FAT method are confirmed after approved container-and-label sample trials.
Turret pitch, format parts, number of label stations, coding, vision and reject are configurable.
Frequently asked questions
The Rotary Sticker Labeling Machine provides controlled label application at demanding outputs using synchronized rotary container handling.
Suitable products and formats include approved round bottles, vials or ampoules with compatible self-adhesive labels. Final suitability is confirmed from approved samples, drawings and process details.
An infeed worm and star wheel pitch containers into a rotary turret, where a synchronized dispenser applies the label before outfeed transfer.
The Rotary Sticker Labeling Machine handles material using positive infeed worm and star wheel container control.
Labeling speed depends on turret pitch and rotation, container stability, number of label stations, label length, dispenser response and any coding, vision or reject operation.
The infeed worm, star wheels, turret supports, label station and application parts are matched to approved container and label samples, roll direction and placement position.
The infeed worm, star wheels and turret supports are format parts for the approved container; label-path rollers, application parts, frame and guards are specified separately.
The available control scope includes servo label dispensing, turret synchronization, product and label sensing with HMI recipes. Final alarms and interlocks are documented in the approved control specification.
Turret pitch, format parts, number of label stations, coding, vision and reject are configurable.
The labeler receives closed containers at controlled pitch and returns labeled packs to coding, vision inspection or packing, with upstream backup and downstream status interlocks.
Available documents can include container-and-label format drawings, tooling list, web path and roll specification, label-station and electrical diagrams, layout, changeover manual and labeling FAT report.
Please provide the following: container and label samples, winding direction, target output, application style, coding and line interfaces.
Contact us
Share your application and required capacity for a quotation.
Confirmed standards
Output, format range, utilities and dimensions remain subject to the approved machine scope.
Automation uses a Delta PLC, 4-inch Delta HMI and Delta drive/VFD.
Delta servo is used for the servo label-dispensing configuration.
The confirmed warranty period is one year.
Installation and commissioning are available; the exact scope is defined in the approved order.
