Dedicated Top-Surface Application
The Top-Side Sticker Labeling Machine applies the approved self-adhesive label to the top face of compatible containers and packs.
Automatic Top-Surface Self-Adhesive Label Applicator
Automatic Top Side Sticker Labeling Machine
The Top-Side Sticker Labeling Machine applies pressure-sensitive labels to the approved top face of containers, tubs, boxes and compatible flat-top packs. The final configuration is developed from container and label samples, loading method and required output.
Top-surface label application
PLC with 4.3-inch HMI
No-container/no-label logic
VFD conveyor speed control

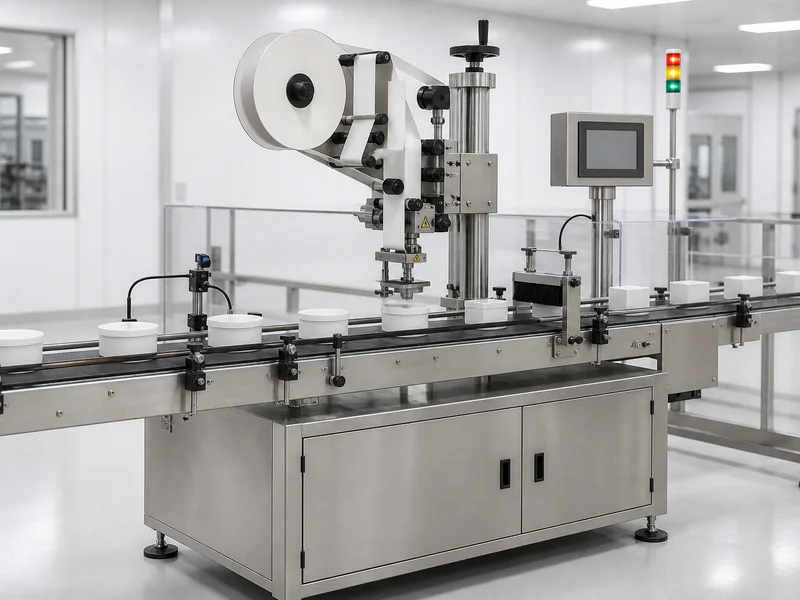

AI-generated conceptual visualization of this machine. Final configuration may vary by approved project scope.
Machine overview
Top Side Sticker Labeling Machine Manufacturer in India
H M Pharma Machines manufactures automatic top side sticker labeling machines in Ahmedabad, Gujarat, India for approved flat-top containers and packs used in food, pharmaceutical, cosmetic, chemical and allied applications.
The product travels on a PVC endless conveyor. A product sensor detects the approved pack, after which a self-adhesive label is dispensed and applied to its top surface. The no-container/no-label sequence helps prevent unnecessary label dispensing.
The reference configuration includes PLC control, a 4.3-inch HMI touchscreen, VFD conveyor speed adjustment and an emergency stop. Output, label size, container range, utilities and automatic-loading suitability are finalized after sample review and trial.
Machine running video
Watch the Top Side Sticker Labeling Machine in Operation
Open the dedicated watch page to view the actual machine demonstration. Product specifications and inquiry options remain available on this page.
Configuration summary
Top Side Labeling Configuration at a Glance
Final machine selection is based on approved container and label samples, loading method, target output and line-integration requirement.
Top SidePressure-sensitive label application
PLC + HMI4.3-inch touchscreen operation
VFDAdjustable conveyor speed
No ProductNo label dispensing
Why this machine
Why Choose the Automatic Top Side Sticker Labeling Machine
02
Controlled Conveyor Handling
A PVC endless conveyor transfers the product through the sensing and labeling zone.
03
PLC-HMI Operation
PLC logic and a 4.3-inch HMI provide operator control for the configured machine sequence.
04
No-Container/No-Label Logic
Product sensing inhibits label application when no approved container is present.
05
GMP-Oriented Construction
The reference design uses an SS pipe frame and an MS top plate clad with SS 304 sheet for rigidity and accessible cleaning.
06
Flexible Loading Options
Manual placement or pneumatic automatic loading can be evaluated according to container geometry.
Operating process
How the Top Side Sticker Labeling Machine Works
The configured system moves each approved pack through four controlled operating phases.
Container Loading
Products are placed on the conveyor manually or through an approved pneumatic loading arrangement.
Product Detection
The sensor detects the incoming container and enables the label-application sequence.
Top Label Application
The self-adhesive label is dispensed and pressed onto the approved top surface.
Discharge & Transfer
The labeled product leaves the application zone for collection or downstream equipment.
Applications & selection
Built Around the Approved Top-Label Application
Ice Cream Tubs and Boxes
Top-cover label application can be configured after review of the container shape, lid surface and label sample.
Food and Beverage Packs
Compatible flat-top packs can be evaluated for automatic sensing, label placement and conveyor handling.
Pharmaceutical Containers
Suitable rigid packs can be reviewed where the approved label is applied to a stable top surface.
Cosmetic and Personal-Care Packs
Top labels for compatible jars, tubs or boxes can be configured after sample trial.
Chemical and Allied Packs
Container material, top-surface stability and label compatibility are confirmed before final selection.
Standalone or Integrated Lines
The machine can operate independently or transfer products to approved downstream equipment.
Technical details
Top Side Sticker Labeling Machine Specifications
Sample-MatchedContainer and label approval
Required OutputFinalized after sample trial
GMP-OrientedRigid, accessible construction
Line-ReadyInterfaces available
| Machine | Automatic Top Side Sticker Labeling Machine |
|---|---|
| Category | Labeling Machines |
| Suitable For | Approved flat-top containers, tubs, boxes and compatible packs |
| Label Application | Self-adhesive label applied to the approved top surface |
| Infeed / Handling | Manual placement or application-specific pneumatic loading onto a PVC endless conveyor |
| Product Detection | No-container/no-label sequence using product sensing |
| Machine Frame | Stainless-steel pipe frame |
|---|---|
| Top Plate | Rigid MS top plate clad with SS 304 sheet |
| Control System | PLC with 4.3-inch HMI touchscreen |
| Conveyor Control | Variable-frequency drive for adjustable conveyor speed |
| Operator Safety | Emergency stop on the control panel; final guarding and protection according to approved scope |
| Line Integration | Standalone supply or integration with approved upstream and downstream equipment |
| Model / Series | Configuration-specific. Automatic Top Side Sticker Labeler series; the final model code is stated in the approved quotation. |
|---|---|
| Output / Throughput | Published reference. Up to 100 packs per minute, depending on container and label size. |
| Accuracy / Acceptance Criterion | Published reference. ±1 mm label-placement accuracy. |
| Electrical Power | Published reference. 1 kW; 230 V, single-phase, 50 Hz. |
| Utilities | Configuration-specific. Electrical supply and any pneumatic, coding, vision or data interfaces are listed for the approved configuration. |
| Overall Dimensions (L × W × H) | Published reference. 1000 × 800 × 1500 mm (L × W × H); optional conveyor height adjustable from 800 to 900 mm. |
| Net / Shipping Weight | Published reference. Approximately 150 kg net / 200 kg gross. |
| Capacity / Format Range | Published reference. Label height 10–160 mm; label length 12 mm to unlimited; minimum gap 3 mm; roll diameter up to 300 mm; core diameter 75–76 mm. |
| Warranty | Published reference. Manufacturing defects in stainless-steel components are covered; normal wear-and-tear parts, consumables and electrical components are excluded. The quotation does not state a warranty duration. |
| Installation / Commissioning Scope | Published reference. Pre-dispatch operational and maintenance training plus installation at buyer works; buyer arranges food and local transportation for the H M Pharma Machines engineer. |
Label size, container range, rated output, machine dimensions, power and compressed-air requirements are confirmed in the approved machine datasheet after sample review.
Options & project scope
Machine Configuration, Loading and Documentation
Approved Product Format
The container or pack must provide a stable top surface suitable for the approved self-adhesive label.
Application Review
Final configuration is selected after review of container samples, label roll, target output and line layout.
Automatic Loading Option
A pneumatic loader can place compatible containers onto the conveyor; unsuitable geometries may require manual placement.
Documented Supply
Manuals, drawings, certificates and qualification support can be included as defined in the approved order.
Controls & protection
Operating Controls, Detection and Safety
The final alarm and interlock philosophy is documented for the approved machine configuration.
Emergency Stop
An emergency switch is provided on the control panel for operator access.
No-Container/No-Label Control
Product sensing prevents label application when no approved container is detected.
Conveyor Speed Control
A variable-frequency drive allows the configured conveyor speed to be adjusted.
PLC Sequence Control
The PLC coordinates product detection, conveyor movement and label application.
HMI Operator Interface
A 4.3-inch touchscreen provides operator access to the configured machine controls.
Pneumatic Loading Control
Where selected, pneumatic loading is matched to the approved container geometry and operating sequence.
Related machines
Explore Related Labeling and Packaging Equipment
Frequently asked questions
Top Side Sticker Labeling Machine FAQs
Answers covering applications, working principle, loading, controls, output and line integration.
What does a top side sticker labeling machine do?
It applies a self-adhesive label to the approved top surface of a moving container, tub, box or compatible flat-top pack.
Which containers are suitable for this machine?
Approved packs with a stable top labeling surface, including suitable ice cream tubs or boxes. Final suitability is confirmed from container and label samples.
Does the machine include no-container/no-label control?
Yes. Product sensing is used so label application is inhibited when no approved container is detected.
How is the machine controlled?
The reference configuration uses PLC control, a 4.3-inch HMI touchscreen and variable-frequency conveyor speed control.
Is automatic container loading available?
A pneumatic container-loading arrangement can be supplied for compatible formats. Some container shapes may require manual placement.
What determines the labeling speed of the Top Side Sticker Labeling Machine?
Output depends on product footprint and spacing, top-surface stability, label length, dispenser response, conveyor speed and the manual or pneumatic loading cycle.
How is another container or top label set up on the Top Side Labeler?
Conveyor guides, product detection, label position, peel plate or applicator and the loading arrangement are adjusted and trialed with approved product and label samples.
Where can the Top Side Sticker Labeling Machine be installed in a packaging line?
The labeler is positioned after the pack's top surface is stable and before final inspection or packing; conveyor level, product spacing and start-stop signals are matched to adjacent equipment.
What information is needed to quote the Automatic Top Side Sticker Labeling Machine?
Please provide the following: container samples or drawings, top-label samples, label roll details, required output, loading method and production-line layout.
