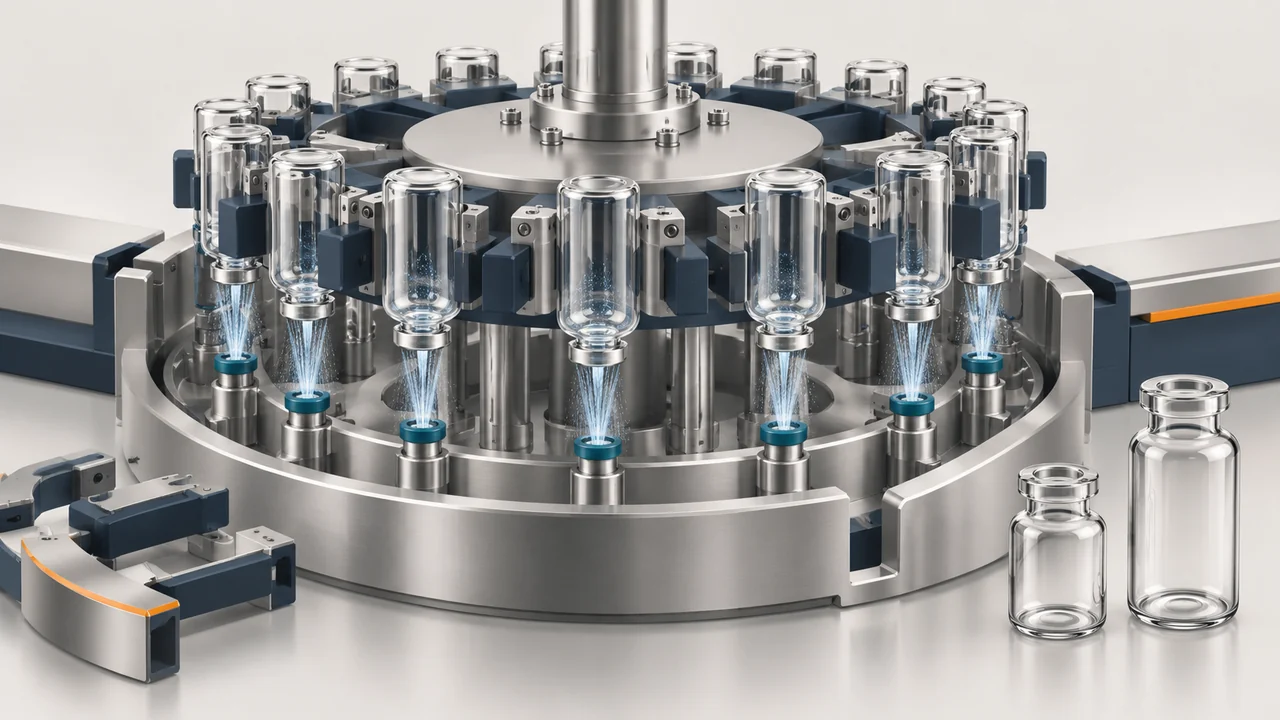

A rotary gripper vial washer changeover affects more than the infeed star wheel. The vial must transfer into the gripper, remain correctly held during inversion, align with internal washing nozzles and return to the outfeed without unstable handling. A useful format review follows that entire path. This guide explains what to check when discussing another glass-vial format on the H M Pharma Machines rotary platform.
Approve every vial format against its neck and body geometry. Review the matched star wheel, grippers and guides, then check nozzle alignment and clearance through the motion cycle. Keep a format-specific adjustment record and observe the final upright transfer.
Review neck geometry alongside body dimensions
Nominal vial volume is a convenient product description, but it does not identify the surfaces used for gripping and transfer. Provide the neck finish, body diameter, overall height, base details and supplier drawing revision. Include representative samples rather than assuming a previously used vial proves suitability for another supplier.
Mark the features that the gripper and transfer parts contact. A format review should establish how the selected parts support the vial without interference at the neck. Do not assume one gripper set covers every vial in the published glass-vial range.
Treat the handling parts as a coordinated set
The rotary platform uses turntable and star-wheel infeed to transfer vials into the gripper system. A feedworm may form part of the selected infeed configuration. Review guides, star wheels, grippers and any other format parts together, including how one mechanism releases the vial as the next takes control.
Ask for a format list showing which parts are exchanged and which are adjusted. Label parts so similar-looking sets cannot be confused. Keep the relevant machine settings beside the component references; remembering an operator’s last adjustment is a weak basis for repeatable setup.
Check nozzle clearance throughout the movement
| Check point | Review question | Useful evidence |
|---|---|---|
| Gripper pickup | Is the vial supported before the previous guide releases it? | Observed transfer with the actual format |
| Inverted position | Does the mouth remain aligned with the wash position? | Station and vial reference recorded together |
| Nozzle approach | Is clearance maintained throughout the specified movement? | Setup record and observed motion |
| Return and release | Does the vial return upright without contact or instability? | Outfeed observation and part identifiers |
The selected design determines nozzle actuation and travel. Establish the required approach and alignment with engineering instead of assuming a servo arrangement or a mechanical arrangement has universal clearance.
Keep mechanical setup and media setup connected
The published rotary reference uses internal RC water, air, PW, air, WFI and final air, with RC water and air externally. When the vial format changes, nozzle alignment must still support the intended internal and external application. A correct sequence on the control display does not show where the spray actually reaches.
Review spray access and drainage with the selected vial in place. Record relevant utility conditions during the trial so observations can be interpreted later. A visibly operating washer does not by itself establish the cleaning result, sterility or depyrogenation; those process objectives require their own defined acceptance work.
Include the next-machine entry in the changeover
The grippers return the washed vial to an upright, neck-up orientation for the configured discharge arrangement. Review the transition onto the selected tray or conveyor and, where included in the line, the downstream tunnel interface. Format changes can affect stability at a transfer even when the washing stations run smoothly.
Compare the outfeed guide settings, transfer height and available accumulation with the next machine. Agree how feeding pauses and restarts when downstream equipment is unavailable. Avoid selecting washer output from its rating alone when the connected equipment cannot accept the same sustained flow.
Release a usable changeover record
A practical record names the vial drawing, change-part set, guide positions, gripper adjustments, nozzle settings and outfeed arrangement. Include photographs that show relevant adjustment locations and a clear statement of who checked the setup. Separate the mechanical setup record from the washing-process results.
- Observe pickup, inversion, wash alignment and upright release on each format.
- Record any contact, tipped vials, interrupted transfers or damaged glass.
- Repeat the agreed restart and format-change sequence before closing the review.
Use the record when the same format returns to production. If the container supplier changes its drawing or glass geometry, reopen the fit review instead of treating the old setup sheet as unconditional approval.
Buyer Questions
Can two vials of the same volume use the same grippers?
Possibly, but volume alone cannot confirm this. Compare the neck, body and height dimensions and trial the actual components with the selected grippers and transfer parts.
Does the rotary washer always use a feedworm?
The platform uses turntable and star-wheel infeed. A feedworm is configuration-dependent, so confirm the selected infeed arrangement and its format parts rather than assuming it is included universally.
What should a changeover record include?
Record the vial reference, exchanged parts, guide and gripper adjustments, nozzle alignment settings, outfeed arrangement and observed handling. Keep process conditions and cleaning acceptance results identifiable alongside that setup.
