For approved containers and liquids compatible with the selected flow meter technology, with automatic container feeding and nozzle positioning.

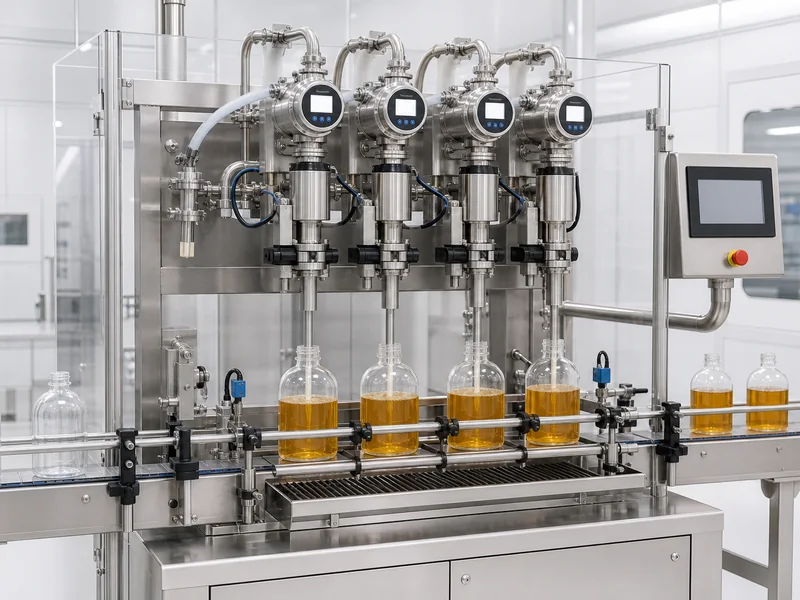

Machine overview
H M Pharma Machines manufactures the Automatic Flow Meter Liquid Filling Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Automatic Flow Meter Liquid Filling Machine uses automatic container feeding and nozzle positioning for container and product flow. Its approved process completes when filled containers release after target confirmation.
Detailed engineering for the Automatic Flow Meter Liquid Filling Machine aligns individual meter feedback, recipe targets and coarse/fine flow control where configured with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Machine running video
Review the reference machine demonstration, then discuss your container format and required output.
Select Play to load the video. This demonstration shows a reference configuration; final format parts, output, utilities, controls and guarding follow the approved project scope.
Data-saving video (approx. 18.3 MB). Open the video file directly. Original video (approx. 52.0 MB).
Why this machine
The Automatic Flow Meter Liquid Filling Machine is intended for approved containers and liquids compatible with the selected flow meter technology; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Automatic container feeding and nozzle positioning.
Individual meter feedback, recipe targets and coarse/fine flow control where configured.
For the Automatic Flow Meter Liquid Filling Machine, the materials and cleanability review follows this product-contact requirement: Product-contact materials, seals, tubing, valves and surface finish are matched to the product and cleaning method in the approved scope.
Product and container changeover covers bottle guides, nozzle positions, meter-compatible product settings and the coarse-and-fine filling recipe.
Filled containers release after target confirmation.
Operating process
Each filling channel measures the liquid passing through its flow meter, and the controller stops the pump or closes the product valve when the programmed quantity is reached.
Containers enter on the conveyor and are grouped beneath the filling nozzles for the selected recipe.
Once container presence is confirmed, the controller starts the assigned pump or opens the product valve so liquid flows through each meter to its nozzle.
Each flow meter continuously reports the delivered quantity while the controller compares the accumulated measurement with the programmed target.
At the target quantity, the controller stops product flow and releases the filled containers to the next line operation.
Applications & selection
Pharmaceutical liquids are metered through individual flow channels after the product, meter type, dose and cleaning method are shown to be compatible.
Nutraceutical preparations can use electronic flow measurement when their viscosity, conductivity or other meter-dependent properties suit the selected sensor.
Cosmetic and personal-care liquids are evaluated for foaming, entrained air and flow stability before the flow meter recipe is approved.
Food and beverage products can be filled through hygienic product paths selected for the formulation and the required cleaning procedure.
Oils, chemicals and agrochemicals require a flow meter technology, seals and valves compatible with the product's physical and chemical properties.
The flow meter filler can exchange bottle-demand and line-status signals with supply pumps, conveyors, cappers and other connected equipment.
Technical details
| Machine | Automatic Flow Meter Liquid Filling Machine |
|---|---|
| Category | Liquid Filling Machines |
| Suitable For | Approved containers and liquids compatible with the selected flow meter technology |
| Working Principle | Product passes through an individual meter while the controller integrates measured flow and regulates the valve or pump to the target. |
| Infeed / Handling | Automatic container feeding and nozzle positioning |
| Outfeed / Transfer | Filled containers release after target confirmation |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Product-contact materials, seals, tubing, valves and surface finish are matched to the product and cleaning method in the approved scope. |
| Control System | Individual meter feedback, recipe targets and coarse/fine flow control where configured |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Electromagnetic, mass-flow or other meter technology is selected only after product-property review. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. Up to 36 bottles per minute, depending on fill volume. |
| Accuracy / Acceptance Criterion | Published reference. ±1% filling accuracy. |
| Electrical Power | Published reference. 230 V, single-phase, 50 Hz. |
| Utilities | Published reference. Pneumatic stopper system; approximately 100 L service tank; utility/loop connection with automatic low-, medium- and high-level control. |
| Overall Dimensions (L × W × H) | Published reference. 3000 × 900 × 2000 mm (L × W × H); conveyor height adjustable from 800 to 900 mm. |
| Net / Shipping Weight | Published reference. Approximately 300 kg net / 500 kg gross. |
| Capacity / Format Range | Published reference. Four filling nozzles; 5–5000 mL fill range; bottles 22–140 mm diameter and 55–200 mm height. |
| Warranty | Published reference. Manufacturing defects in stainless-steel components are covered; normal wear-and-tear parts, consumables and electrical components are excluded. The quotation does not state a warranty duration. |
| Installation / Commissioning Scope | Published reference. Pre-dispatch operational and maintenance training plus installation at buyer works; buyer arranges food and local transportation for the H M Pharma Machines engineer. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved containers and liquids compatible with the selected flow meter technology.
Electromagnetic, mass-flow or other meter technology is selected only after product-property review.
Documentation for the Automatic Flow Meter Liquid Filling Machine records individual meter feedback, recipe targets and coarse/fine flow control where configured, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Individual meter feedback, recipe targets and coarse/fine flow control where configured.
Infeed readiness: automatic container feeding and nozzle positioning.
Approved transfer: filled containers release after target confirmation.
Published reference: Pneumatic stopper system; approximately 100 L service tank; utility/loop connection with automatic low-, medium- and high-level control.
Published reference: ±1% filling accuracy.
Electromagnetic, mass-flow or other meter technology is selected only after product-property review.
Related applications
For dosing-method selection using product and container samples, read the liquid filling machine selection guide.
Frequently asked questions
The Automatic Flow Meter Liquid Filling Machine measures product flow electronically and stops every filling channel at its programmed quantity.
Suitable products and formats include approved containers and liquids compatible with the selected flow meter technology. Final suitability is confirmed from approved samples, drawings and process details.
Product passes through an individual meter while the controller integrates measured flow and regulates the valve or pump to the target.
The Automatic Flow Meter Liquid Filling Machine handles material using automatic container feeding and nozzle positioning.
Throughput depends on the target volume, product flow and foaming behavior, selected meter and pump, valve response, number of channels and container indexing time.
Each recipe is qualified with the compatible flow meter technology, pump or valve settings, cut-off compensation, nozzle and container guides using approved product and bottle samples.
Product compatibility is confirmed for each meter body, supply pipe, valve, seal and nozzle; the non-contact frame, conveyor and guarding are specified independently.
The available control scope includes individual meter feedback, recipe targets and coarse/fine flow control where configured. Final alarms and interlocks are documented in the approved control specification.
Electromagnetic, mass-flow or other meter technology is selected only after product-property review.
The machine links the product-supply pump or tank with indexed bottle handling, then releases filled containers to capping; meter, pump and conveyor status are coordinated by the control system.
The scope can include flow meter and wetted-parts data, calibration and cut-off verification, piping and utility diagrams, electrical drawings, recipe instructions, manuals, layout and filling FAT protocol.
Please provide the following: product conductivity, viscosity, density and air content, fill basis, volumes, output and calibration requirement.
