1–20 mL Ampoule Range
The rotary gripper arrangement handles approved glass-ampoule configurations across the specified range.
Pharmaceutical Ampoule Washing System

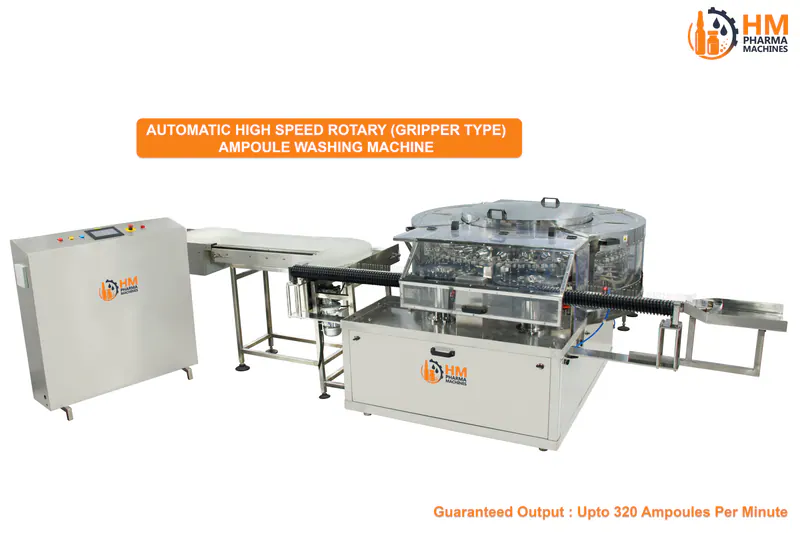

High-Speed Rotary Gripper Ampoule Washing Machine
For approved 1–20 mL glass ampoules, with separate 120, 150, 240 and 320 APM models. Mesh-conveyor infeed connects to a six-stage internal and two-stage external wash cycle.
- Ampoule range
- 1–20 mL
- Output models
- Reference: 120 / 150 / 240 / 320 ampoules per minute (APM), matched to the selected model.
- Process
- 6 internal + 2 external stages
- Infeed
- Mesh conveyor infeed
For a quote, share every ampoule size, required ampoules per minute, wash-cycle requirements and installation location. Samples or drawings help confirm the infeed and gripper format parts. We supply within India only and respond within 1 day.
Mesh-conveyor, feed worm and star wheel handling for rotary gripper ampoule washing
Machine overview
Rotary Gripper Ampoule Washing Machine Manufacturer in India
H M Pharma Machines manufactures the Rotary Gripper Ampoule Washing Machine in Ahmedabad, Gujarat, India. It is configured for glass ampoules from 1–20 mL.
Ampoules are transferred from the mesh conveyor through the feed worm and infeed star wheel before entering the rotary gripper washing machine. The machine is available in 120 APM, 150 APM, 240 APM and 320 APM models; APM means ampoules per minute.
The process arrangement includes six internal stages in the sequence RC water, air, PW, air, WFI and air. Two external stages apply RC water followed by air. Separate process tanks can serve RC water, PW and WFI; tank capacities, pump scope, level controls, pressure monitoring and interlocks are finalized in the approved order.
Machine running video
Watch the Rotary Gripper Ampoule Washing Machine in Operation
Review the reference machine demonstration, then discuss your container format and required output.
Select Play to load the video. This demonstration shows a reference configuration; final format parts, output, utilities, controls and guarding follow the approved project scope.
Data-saving video (approx. 27.9 MB). Open the video file directly. Original video (approx. 98.8 MB).
Available models
Select the Required Ampoule Washing Output
Choose the model according to the required ampoules-per-minute output and approved 1–20 mL ampoule configuration.
120 APMAmpoule washing machine model
150 APMAmpoule washing machine model
240 APMAmpoule washing machine model
320 APMAmpoule washing machine model
Why this machine
Designed for High-Speed Ampoule Washing
02
Four Output Models
Select 120, 150, 240 or 320 APM according to the required production output.
03
Mesh Conveyor Infeed
Ampoules transfer through the feed worm and infeed star wheel before entering the machine.
04
Defined Washing Sequence
Six internal and two external stages use RC water, PW, WFI and air.
05
Separate Process Tanks
Separate process tanks can serve RC water, PW and WFI; capacities and materials are finalized in the approved order.
06
Automatic Process Protection
Monitoring and interlock functions are finalized in the approved control specification.
Ampoule infeed sequence
How Ampoules Enter the Washing Machine
The ampoule infeed system provides a defined transfer path from bulk loading to the rotary gripper washing section.
Mesh Conveyor
Ampoules are loaded and carried forward on the mesh conveyor.
feed worm
The feed worm spaces and transfers ampoules from the mesh conveyor.
Infeed star wheel
The infeed star wheel receives the spaced ampoules and transfers them toward the machine.
Rotary Gripper Machine
Ampoules enter the rotary gripper washing machine for the defined wash cycle.
Published reference wash cycle
Six-Stage Internal Ampoule Washing Sequence
Each gripped ampoule passes through the following six internal water and air stages.
RC Water
Recirculated water provides the first internal wash.
Air
An air stage follows the RC water wash.
PW
Purified Water provides the next internal wash.
Air
An air stage follows the PW wash.
WFI
Water for Injection provides the final water stage.
Air
The final air stage completes the internal cycle.
Terminology: RC means recirculated water, PW means Purified Water and WFI means Water for Injection.
External washing sequence: two stages are provided for the ampoule outer surface.
External Stage 01 — RC Water
RC water is applied to the ampoule outer surface.
External Stage 02 — Air
An air stage follows the external RC water wash.
Technical details
Rotary Gripper Ampoule Washing Machine Specifications
1–20 mLGlass-ampoule range
4 Models120, 150, 240 and 320 APM
6 + 2 StagesInternal and external washing stages
Process TanksDetails per approved order
| Suitable For | Glass ampoules only |
|---|---|
| Output Unit | APM — ampoules per minute |
| Infeed Handling | Mesh conveyor → feed worm → infeed star wheel → machine |
| Internal Stages | 6 |
| Internal Sequence | RC water → air → PW → air → WFI → air |
| External Stages | 2 |
| External Sequence | RC water → air |
| Process Tanks | Separate process tanks; quantity, capacity and material per approved order |
|---|---|
| Tank Services | RC water, PW and WFI |
| Process Pumps | Defined in the approved order |
| Tank Level Control | Defined in the approved control specification |
| HMI Pressure Display | Monitoring points defined in the approved control specification |
| Safety Interlocks | Defined in the approved control specification |
| Automation Standard | Delta PLC, 7-inch Delta HMI, Delta drive/VFD and Delta servo |
| Compressed Air | 6 bar |
| Documents | May be included as defined in the approved order |
| Model / Series | Published reference. HMRGAWM-120 / HMRGAWM-150 / HMRGAWM-240 / HMRGAWM-320. |
|---|---|
| Output / Throughput | Published reference. 120 / 150 / 240 / 320 ampoules per minute (APM), matched to the selected model. |
| Accuracy / Acceptance Criterion | Not applicable. This is not a dosing or label-placement function; acceptance is based on stable container handling, the approved wash sequence and the FAT protocol. |
| Electrical Power | Published reference. 440 V AC, three-phase, 50 Hz; connected load 6 HP. |
| Utilities | Published reference. Compressed air at 6 bar; RC-water, PW and WFI process tanks and pumps are sized in the approved order. |
| Overall Dimensions (L × W × H) | Overall dimensions are model- and configuration-specific. Final L × W × H is confirmed in the customer-approved GA drawing based on capacity, output, process requirements and site layout before order execution. |
| Net / Shipping Weight | Published reference. Approximately 1200 kg net. |
| Capacity / Format Range | Published reference. Approved 1–20 mL glass ampoules; process-tank quantity and capacity are confirmed in the approved order. |
| Warranty | Published reference. 1 year; commencement, coverage and exclusions are defined in the approved order. |
| Installation / Commissioning Scope | Published reference. Installation and commissioning are available; the exact included work and customer responsibilities are defined in the approved order. |
The 1–20 mL ampoule range, final model selection, utilities and performance are confirmed against the approved glass-ampoule sample, drawing and washing process.
Water Consumption
Water consumption varies with the selected machine model, operating speed, ampoule size and approved washing cycle. The project-specific requirement is confirmed for the selected configuration and agreed operating conditions.
Recirculated-water flow and fresh PW/WFI consumption are specified separately during technical review.
Process control & protection
Project-Defined Monitoring for Water, Air and Tank Level
Monitoring and protection functions are finalized in the approved control specification.
Tank-Level Monitoring
Tank-level sensing and feed logic are included only as defined in the approved control specification.
Utility Monitoring
Required RC-water, PW, WFI and compressed-air monitoring points are finalized in the approved order.
HMI Display
The 7-inch Delta HMI displays the monitoring points included in the approved control scope.
Safety Responses
Alarms and automatic-stop responses are defined in the approved control specification.
Format, utilities & integration
Ampoule Format Approval and Site Planning
Use the ampoule model comparison to shortlist 120, 150, 240 or 320 APM. These points then define the selected machine; the ampoule and vial selection guide covers the wider project review.
Preparing for the factory trial? Use our washing machine FAT checklist to agree samples, wash conditions, output checks and dispatch records.
Approve the Complete Ampoule Set
For every 1–20 mL glass format, provide a sample or drawing and required APM. Agree the feed worm, star wheel and gripper format parts and the operating rate for the approved wash cycle.
Confirm Water, Air and Power
Published references are 440 V AC, three-phase, 50 Hz, 6 HP connected load and 6 bar air. Request the water and air flow schedule and approved RC/PW/WFI tank and pump sizing before arranging site services.
Review Infeed and Outfeed Space
Show the mesh-conveyor entry and downstream tunnel or line interface on the room layout. Confirm transfer height, direction, access and the selected configuration's dimensions in the approved general-arrangement drawing.
Documentation & Traceability
The approved order may include Design Qualification (DQ), Installation Qualification (IQ), Operational Qualification (OQ), Performance Qualification (PQ), Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) documents, plus the HMI Manual and Operation Manual. Component certificates, wiring diagrams and machine layout are included only when defined in the approved order.
Related machines and guide
Ampoule Washing, Filling and Labeling
Frequently asked questions
Rotary Gripper Ampoule Washing Machine FAQs
Technical answers covering the 1–20 mL ampoule range, APM models, mesh-conveyor infeed, RC/PW/WFI sequence, automatic controls and documents.
What ampoule sizes can the Rotary Gripper Ampoule Washing Machine handle?
The machine works with glass ampoules from 1–20 mL, subject to the approved glass-ampoule configuration.
What output models are available for the Rotary Gripper Ampoule Washing Machine?
The machine is available in four output models: 120 APM, 150 APM, 240 APM and 320 APM.
What does APM mean?
APM means ampoules per minute and identifies the rated output model.
How do ampoules enter the washing machine?
Ampoules travel from the mesh conveyor into the feed worm, then into the infeed star wheel and finally into the rotary gripper washing machine.
How many internal and external wash stages does the Rotary Gripper Ampoule Washing Machine provide?
The ampoule washing machine has six internal washing stages and two external washing stages.
What is the internal wash sequence of the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, the internal sequence is RC water, air, PW, air, WFI and air.
What is the external wash sequence of the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, the two external stages are RC water followed by air.
Which process-water media does the Rotary Gripper Ampoule Washing Machine use?
For the Rotary Gripper Ampoule Washing Machine, the washing process uses RC water, PW and WFI, together with air stages.
How are RC, PW and WFI defined for the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, RC means recirculated water, PW means Purified Water and WFI means Water for Injection.
How many process tanks are specified for the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, separate process tanks can serve RC water, PW and WFI; quantity, capacity and material are finalized in the approved order.
How many pumps are specified for the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, pump quantity, rating and contact material are finalized in the approved order.
How is tank level controlled on the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, tank-level sensing, feed logic and stop responses are defined in the approved control specification.
How are process pressures monitored on the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, required pressure-monitoring points, HMI display and responses are defined in the approved control specification.
Which certificates and technical records can accompany the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, qualification documents, acceptance-test records, manuals, certificates, wiring diagrams and machine layout may be included as defined in the approved order.
What automation, warranty and commissioning scope is published for the Rotary Gripper Ampoule Washing Machine?
For the Rotary Gripper Ampoule Washing Machine, the standard automation uses a Delta PLC, 7-inch Delta HMI, Delta drive/VFD and Delta servo. The machine has a 1-year warranty. Installation and commissioning are available, with the exact scope defined in the approved order.
