Bottle filling for viscous liquid products

Automatic Syrup Liquid Filling Machine

H M Pharma Machines manufactures syrup filling machine solutions for approved pharmaceutical, Ayurvedic, herbal, nutraceutical and food syrups, with dosing technology selected around viscosity, fill range, container and required output.

Compare Filling Methods Request a Proposal Download Technical Brochure (PDF)

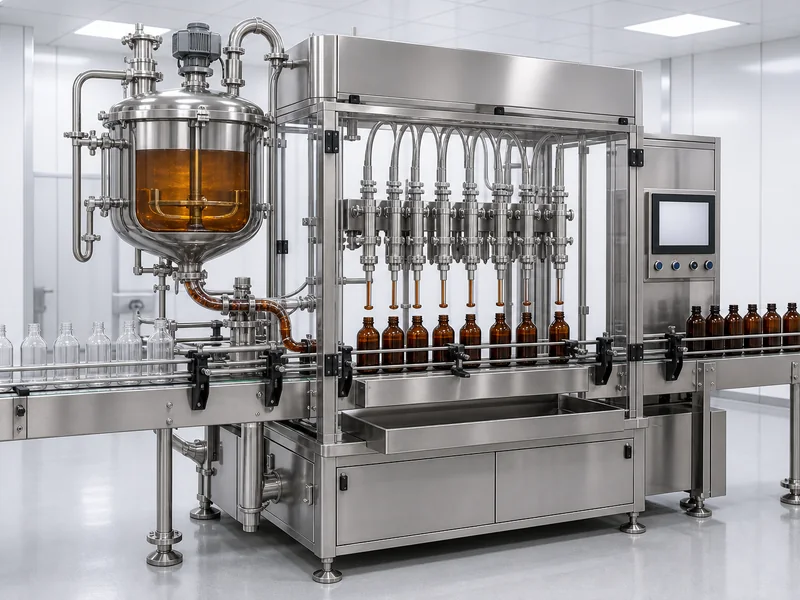

AI-generated conceptual visualization of Automatic Syrup Liquid Filling Machine; final machine configuration may vary

Servo Piston Syrup Filling

Integrated syrup liquid filling and packaging line

Complete Syrup Bottling Line

Product-Matched Dosing

Thin to Viscous Syrups

Glass, PET & HDPE Bottles

Anti-Drip Options

Line Integration

Machine running video

Watch the Automatic Syrup Liquid Filling Machine in Operation

Open the dedicated video page to watch a demonstration of this machine in operation. Product specifications and inquiry options remain available on this page.

Watch Machine Video

Application overview

Syrup Filling Built Around Product Behavior

A syrup liquid filling machine must control a product that may be viscous, sticky, foaming or sensitive to temperature. The correct system is selected from the actual syrup, required dose and container instead of assuming that one filler suits every application.

Product-contact materials, seals, piping, hopper or feed arrangement, nozzles and cleaning provisions are finalized based on the approved syrup and hygiene requirement. Diving or shut-off nozzles, recipe-based settings and no-bottle-no-fill control can be configured where appropriate.

The machine can be supplied as standalone equipment or integrated with bottle washing or feeding, filling, plug insertion, screw or ROPP capping, labeling, coding and conveying.

Dosing technology

Which Syrup Filling Machine Is Suitable?

Initial options are compared below. Final suitability is confirmed through product review, approved samples and trials. For a broader review of viscosity, foaming, fill volume, container and automation requirements, see how to choose the right liquid filling machine.

Servo Piston Filling

Programmable piston motion for compatible syrups ranging from low to high viscosity, adjustable doses and controlled nozzle profiles.

View Servo Piston Filler

Servo Gear Pump Filling

Calibrated pump rotation for compatible syrups ranging from free-flowing to viscous where the selected pump and seals suit the formulation.

View Gear Pump Filler

Volumetric Filling

Repeatable preset-volume dosing using an application-matched piston or metering chamber.

View Volumetric Filler

Typical applications

Pharmaceutical, Herbal and Food Syrup Filling

Every formulation requires compatibility review; the examples below describe common project categories rather than guaranteed universal suitability.

Pharmaceutical Syrups

Oral liquid and cough syrup projects with approved contact parts, repeatable dosing and downstream closing requirements.

Ayurvedic & Herbal Syrups

Application review for herbal extracts, tonics and compatible formulations that may vary in viscosity or suspended content.

Food & Nutraceutical Syrups

Filling solutions for approved food-grade or nutraceutical syrup products with container and cleaning requirements defined by the project.

Selection guide

Information Needed to Configure a Syrup Filler

Syrup Sample

Provide formulation properties, viscosity range, density, foam, temperature and any particles.

Bottle & Closure

Share glass, PET or HDPE bottle samples, neck dimensions, plug and cap details.

Fill & Output

Confirm dose range, target accuracy, bottles per minute and batch or shift quantity.

Cleaning & Line

Define cleaning method, utilities, upstream and downstream machines and available floor layout.

Complete syrup bottling line

From Empty Bottle to Labeled Syrup Pack

A complete syrup line can be engineered from approved standalone machines and synchronized controls.

1. Bottle Preparation

A turntable, bottle-feeding system or washing arrangement is selected for the approved container and hygiene requirement.

2. Fill & Close

Syrup dosing is followed by plug insertion, screw capping or ROPP capping as required.

3. Label & Transfer

Sticker labeling, coding, inspection, turntables and conveyors are integrated into the approved layout.

Specification basis

Published Reference Specifications for Syrup Liquid Filling Machine

The table gives two published H M Pharma Machines reference configurations suitable for syrup applications. Their values are not interchangeable; the approved quotation and machine datasheet identify the technology and specification set supplied.

Published Reference Configurations and Commercial Scope
Model / Series	Configuration 1 — 8-Head Volumetric Reference Automatic 8 Head Volumetric Liquid Filling Machine with piston/syringe dosing. Configuration 2 — Four-Head Servo Gear-Pump Reference Automatic four-head servo gear-pump configuration. Selection note: the approved syrup trial determines which technology and machine reference applies.
Output / Throughput	8-Head Volumetric Reference Up to 90 bottles per minute. Four-Head Servo Gear-Pump Reference Up to 24 bottles per minute. Both rates depend on syrup characteristics, fill volume, bottle and approved operating conditions.
Accuracy / Acceptance Criterion	8-Head Volumetric Reference Filling accuracy is specified in the approved quotation and FAT protocol. Four-Head Servo Gear-Pump Reference ±1% under the approved syrup, dose, bottle and FAT test conditions. The contractual tolerance and FAT sampling method are confirmed for the approved syrup, dose, bottle and operating conditions.
Electrical Power	8-Head Volumetric Reference 440 V AC, three-phase, 50 Hz; 2 HP main motor plus 0.5 HP conveyor motor. Four-Head Servo Gear-Pump Reference 440 V AC, three-phase, 50 Hz; approximately 4 kW connected load.
Utilities	8-Head Volumetric Reference Pneumatic bottle stopping; air consumption is not published. Four-Head Servo Gear-Pump Reference Compressed air at 8 CFM and 6 bar. Product-feed, syrup-temperature and cleaning requirements are confirmed for the selected configuration.
Overall Dimensions (L × W × H)	8-Head Volumetric Reference Approximate footprint: 3000 × 1500 mm; published overall height is not available. Four-Head Servo Gear-Pump Reference Approximately 3648 × 800 × 2000 mm (L × W × H). The approved general-arrangement drawing governs the selected machine.
Net / Shipping Weight	8-Head Volumetric Reference Approximately 200 kg net. Four-Head Servo Gear-Pump Reference Approximately 300 kg net / 500 kg gross. The selected machine's packing list governs shipping weight.
Capacity / Format Range	8-Head Volumetric Reference 10–1000 mL; bottle diameter 30–100 mm; container height up to 500 mm. Four-Head Servo Gear-Pump Reference 500 mL–5 L. These ranges belong to different configurations and are not interchangeable.
Warranty	8-Head Volumetric Reference 1-year warranty. Four-Head Servo Gear-Pump Reference A warranty duration is not stated in this published reference. For the selected syrup machine, commencement, coverage, exclusions and claim terms are defined in the approved quotation or order.
Installation / Commissioning Scope	Order-specific. Supplier work is limited to the installation, commissioning, SAT, operator training and handover items expressly included in the approved quotation. The same document assigns unloading, positioning, utilities to termination points, civil work, trial syrup and bottles, site access, permits, travel and accommodation responsibilities.

Frequently asked questions

Syrup Filling Machine FAQs

Which filling machine is suitable for syrup?

The choice depends on viscosity, foaming, particles, fill volume, container, accuracy, output and cleaning method. Servo piston, volumetric or a compatible pump system may be considered after application review and trials.

Can one machine fill different syrup bottle sizes?

Compatible bottle formats can be handled through approved settings, guide adjustments and dedicated change parts.

Can the machine fill hot syrup?

Temperature-controlled filling may be considered only after reviewing the product temperature, materials, seals, piping and operator-safety requirements.

How do you control dripping or stringing?

Application-matched shut-off or diving nozzles, pump reversal and controlled filling profiles may be used where suitable for the tested syrup.

Can it be supplied as a complete line?

Yes. Bottle preparation, filling, plugging or capping, labeling, coding and conveying can be integrated to meet the approved requirement.
