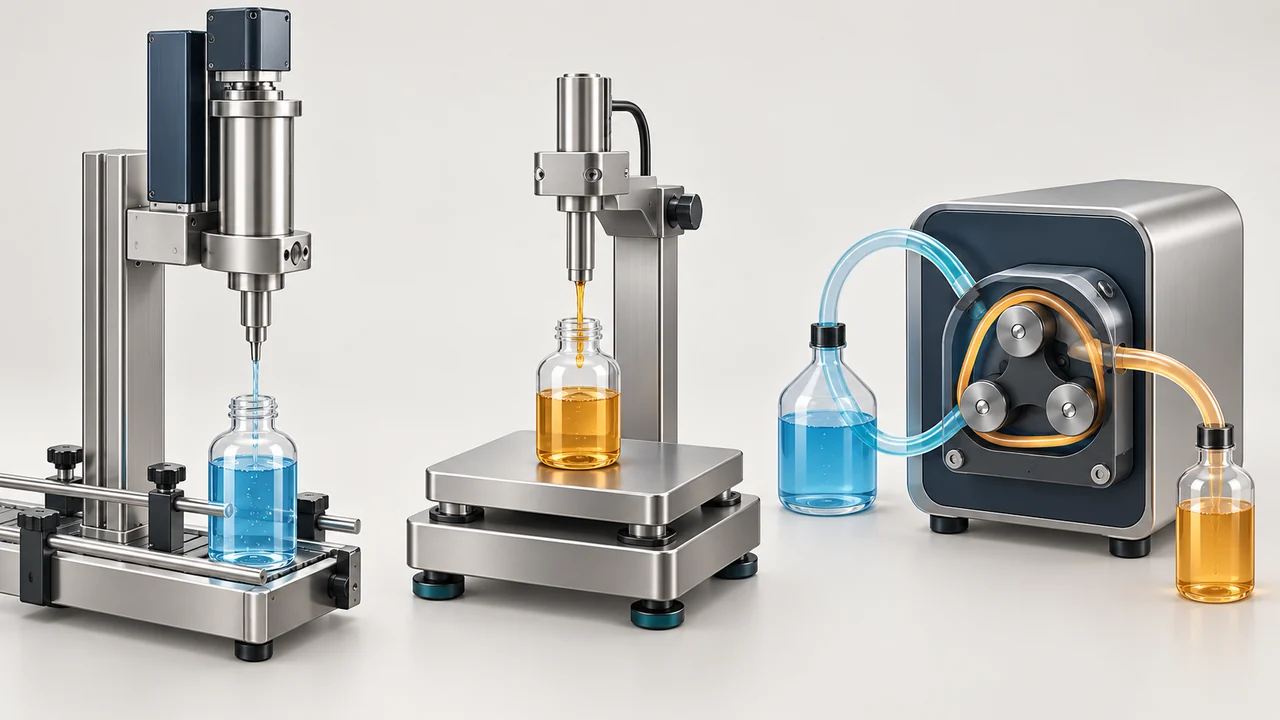

A liquid filler should be compared by what it measures and how the product travels through it. A servo piston liquid filling machine, a load cell liquid filling machine and a peristaltic pump filling machine can serve different needs even when the same bottle appears to fit each one. This comparison focuses on the evidence a buyer should collect before choosing between those dosing methods.
Choose piston filling when a suitable metering cylinder and valve can deliver the required liquid volume. Choose load cell filling when the target is net product weight and the container can be weighed reliably. Consider peristaltic filling when a compatible tubing path suits the liquid and dose. Test the actual product, pack and operating cycle before comparing output or tolerance.
Compare the dose basis before comparing speed
First decide whether the purchase requirement is a delivered volume or a net weight. These are related through density, but they are not interchangeable acceptance statements. The machine setting, the buyer's independent measurement and the label quantity should use a clearly defined basis.
| Method | Dosing basis | Important trial variable |
|---|---|---|
| Servo piston | Programmed piston displacement | Product supply and valve/nozzle behavior |
| Load cell | Product weight after container tare | Weighing stability and coarse/fine cut-off |
| Peristaltic pump | Calibrated pump rotation through tubing | Tubing selection and calibration condition |
Piston trials should include the complete product path
A servo piston filler draws liquid into a cylinder and discharges it through a valve and nozzle. Review the smallest and largest intended doses alongside the cylinder selection; a recipe change does not establish that every dose fits the same hardware.
Observe suction, discharge, bottle indexing and final cut-off together. For viscous or particle-containing products, ask which valves, seals and nozzles were used in the trial. Diving nozzles, independent channels and particle-compatible arrangements should be identified as selected features rather than assumed from the machine name.
A load cell needs a reliable weighing cycle
The load cell filler records the empty container weight and follows the net product added during coarse and fine filling. The evaluation therefore includes tare capture, product settling and the point at which flow stops, not just the pumping period.
Use production containers and check that guides, hoses or neighboring bottles do not disturb the weighing station. Record net-weight results independently and agree how out-of-tolerance containers are identified. An integrated reject device or reporting system is a separate scope item, not an automatic consequence of weighing the fill.
Peristaltic selection includes tubing and replacement rules
In a peristaltic pump filler, rollers compress tubing to move the liquid. The product path includes the selected tubing, fittings and filling nozzle; the liquid does not need to contact the pump mechanism.
Record tubing material, bore, installed length and calibration settings with each result. Discuss compatibility, tubing life and the proposed cleaning or disposable-path arrangement. Retest after a tubing change under the agreed procedure. A tubing-based system does not by itself establish a sterile process or remove the need to assess the complete filling environment.
Run a comparison that measures useful bottles
Give each supplier the same liquid batch, dose targets and bottle samples. Document temperature, feed arrangement and the measurement method, then include starts, stops and replenishment as well as steady running. Record acceptable filled containers and rejects separately; a fast mechanical cycle with unsuitable fills is not the production result being purchased.
- Identify the product batch and container format.
- Record the machine settings and contact-path components.
- Compare dose results using the agreed sampling method.
- Observe changeover, cleaning access and recovery after a stop.
Turn the trial into a quotation requirement
When approaching a liquid filling machine manufacturer in India, submit the target dose basis, product details, container drawings and trial expectations together. Ask for a quotation that identifies the chosen mechanism, filling channels, change parts and utilities, with an acceptance method tied to the tested conditions.
Compare included equipment consistently: product supply, bottle handling, nozzles, weighing, rejection and downstream transfer can differ between offers. H M Pharma Machines can review these requirements against its listed filling methods; the commercial decision should follow the documented process fit rather than the most attractive headline speed.
Buyer Questions
Is a servo piston always better for viscous liquids?
It is a candidate when the cylinder, valves and nozzle suit the formulation. Product behavior and trial results determine suitability; viscosity alone is not a complete selection rule.
Can weight results be used to check a volume fill?
They can support the comparison when density and temperature are known and the acceptance calculation is defined. Do not treat a weight reading as a volume specification without that basis.
Does peristaltic filling eliminate cleaning requirements?
No. Review the tubing, fittings, nozzle and handling arrangement. A disposable path, if selected, also needs defined installation, replacement and verification procedures.
