What output does the machine provide?

Output is up to 60 bottles per minute, subject to the approved bottle, label and operating conditions.

Automatic Double-Side Sticker Labeling System

Oval Bottle Double Side Sticker Labeling Machine

Automatic front-and-back self-adhesive labeling for approved 100 mL to 1 L HDPE square, oval and rectangular bottles, with output up to 60 BPM.

Up to 60 BPM

100 mL to 1 L HDPE bottles

+/- 1 mm label placement accuracy

Two label heads for front-and-back application

Get Machine Quote WhatsApp Us

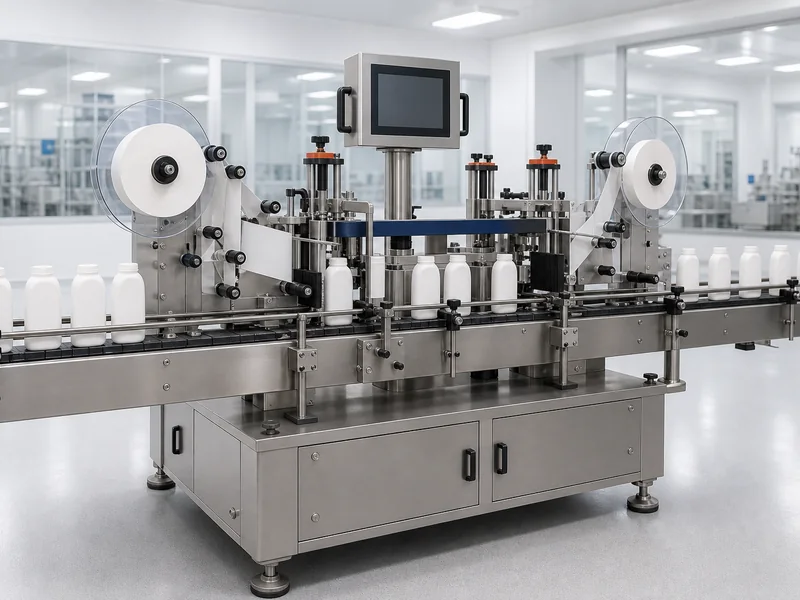

Oval Bottle Double Side Sticker Labeling Machine manufactured in India by H M Pharma Machines

Automatic double-side sticker labeling for approved square, oval and rectangular HDPE bottles

GMP-Oriented EngineeringApplication-Matched DesignInstallation SupportAfter-Sales Service

Machine overview

Automatic Double-Side Sticker Labeling Machine Manufacturer in India

H M Pharma Machines manufactures this automatic double-side sticker labeling machine in Ahmedabad, Gujarat, India for approved 100 mL to 1 L HDPE square, oval and rectangular bottles.

Bottles travel from left to right. A bottle separator and synchronized conveyor guide each container between two label dispensers for front-and-back self-adhesive label application.

Rated output is up to 60 BPM and label placement accuracy is +/- 1 mm, subject to the approved bottle, label and label-roll samples.

Verified configuration

Verified Operating Range

Final suitability remains subject to approved bottle, label and label-roll samples.

60 BPMMaximum rated output

100 mL-1 LApproved HDPE bottle range

+/- 1 mmPlacement accuracy

2 HeadsFront-and-back application

Why this machine

Verified Features of the Oval Bottle Double Side Sticker Labeling Machine

Multi-Format Bottle Range

Handles approved 100 mL to 1 L HDPE square, oval and rectangular bottles.

Double-Side Application

Two label heads apply front-and-back self-adhesive labels in one pass.

Delta Controls

Delta PLC, Delta 4-inch HMI and Delta drive/VFD provide operator control and synchronized speed adjustment.

Automatic Label-Length Detection

The control system detects label length for the approved label roll.

GMP-Model Construction

SS-304 cladding is used in exposed machine areas.

Low-Maintenance Changeover

Final settings and change parts are matched to approved bottle and label samples.

Operating process

How the Oval Bottle Double Side Sticker Labeling Machine Works

The verified configuration moves bottles from left to right through four synchronized stages.

Step 01

Bottle Infeed

Approved bottles enter the adjustable conveyor.

Step 02

Bottle Separation

A separator spaces each bottle for controlled label application.

Step 03

Double-Side Labeling

Two synchronized dispensers apply the front and back self-adhesive labels.

Step 04

Discharge

The labeled bottle transfers from the machine for the next approved line operation.

Applications & selection

Approved Bottle and Label Inputs

HDPE Bottles

Verified for approved HDPE containers from 100 mL to 1 L.

Square Bottles

Front-and-back labeling is configured from approved bottle and label samples.

Oval Bottles

Handling is finalized against the approved oval bottle geometry.

Rectangular Bottles

Guides and label-head positions are set from approved samples.

Self-Adhesive Labels

Final label suitability depends on label material, roll winding and sample quality.

Sample Approval

Rated output and accuracy are subject to approved bottle, label and label-roll trials.

Technical details

Oval Bottle Double Side Sticker Labeling Machine Specifications

60 BPMMaximum output

+/- 1 mmPlacement accuracy

220 V ACSingle phase, 50 Hz

4 kWApproximate connected load

Application & Operating Configuration
Machine	Oval Bottle Double Side Sticker Labeling Machine
Bottle Range	100 mL to 1 L HDPE square, oval and rectangular bottles
Output	Up to 60 BPM, subject to approved samples and operating conditions
Labeling Accuracy	+/- 1 mm, subject to bottle and label quality
Label Heads	Two heads for double-side self-adhesive label application
Operating Direction	Left to right
Maximum Bottle Height	300 mm
Conveyor	Adjustable 800-900 mm height; 88 mm width

Construction, Controls & Utilities
Construction	GMP model with SS-304 cladding in exposed areas
Dimensions	3000 x 800 x 2000 mm
Weight	Approx. 300 kg net / 400 kg gross
Controls	Delta PLC, Delta 4-inch HMI and Delta drive/VFD
Label Drive	Stepper motor standard; optional Delta servo upgrade
Electrical Supply	220 V AC, single phase, 50 Hz; approx. 4 kW
Compressed Air	Not required for the standard configuration
Safety	No-bottle/no-label interlock, emergency stop and overload protection
Warranty & Service	12 months from dispatch; one-time installation, commissioning and operator training included, subject to approved order responsibilities

Final suitability requires approved bottle, label and label-roll samples. Model number and transparent-label sensor make are confirmed with the approved order.

Options & project scope

Verified Configuration and Support

Standard Label Drive

Stepper-motor label dispensing is included in the standard configuration.

Optional Servo Upgrade

Delta servo-based label dispensing is available as the verified drive upgrade.

Transparent Labels

An optional transparent-label sensor can be selected; the sensor make is confirmed with the approved order.

Installation Support

One-time installation, commissioning and operator training are included. Customer-side utilities and site logistics follow the approved order responsibilities.

Controls & protection

Verified Controls, Alarms and Safety Interlocks

The verified control platform combines synchronized label dispensing with essential operator and drive protection.

Delta PLC & VFD

Delta PLC logic and Delta drive/VFD control the machine sequence and synchronized speeds.

4-Inch Delta HMI

The operator interface uses a 4-inch Delta HMI.

Automatic Label Detection

Automatic label-length detection supports setup for the approved label roll.

No-Bottle / No-Label

The machine includes no-bottle/no-label interlock logic.

Emergency Stop

An emergency-stop control is included in the verified safety scope.

Overload Protection

Drive and motor overload protection is included.

Related machines

Explore Related Labeling Machines

Frequently asked questions

Oval Bottle Double Side Sticker Labeling Machine FAQs

Answers based on the verified machine configuration and approved sample requirements.

Which bottles are suitable for this machine?

The verified range is approved 100 mL to 1 L HDPE square, oval and rectangular bottles. Final suitability depends on approved bottle and label samples.

What production output is available?

Output is up to 60 BPM, subject to the approved bottle, label and operating conditions.

What label placement accuracy is available?

Label placement accuracy is +/- 1 mm, subject to bottle and label quality and approved samples.

Which controls and label drive are used?

The machine uses a Delta PLC, Delta 4-inch HMI and Delta drive/VFD. Standard label dispensing uses a stepper motor; a Delta servo dispensing upgrade is optional.

What utilities are required?

The verified electrical supply is 220 V AC, single phase, 50 Hz with an approximate 4 kW connected load. Compressed air is not required for the standard configuration.

What are the machine dimensions and weight?

Machine dimensions are 3000 x 800 x 2000 mm, with approximately 300 kg net and 400 kg gross weight.

Which safety interlocks are included?

The verified scope includes no-bottle/no-label logic, emergency stop and overload protection.

Which options are verified?

Verified options are Delta servo-based label dispensing and a transparent-label sensor. The sensor make is confirmed with the approved order.

What warranty and installation support are included?

The warranty is 12 months from dispatch. One-time installation, commissioning and operator training are included; customer-side site utilities and logistics are arranged as specified in the approved order.
