Multi-Format Bottle Range
The Square Bottle Double Side Sticker Labeling Machine handles approved 100 mL–1 L HDPE square, oval and rectangular bottles.
Automatic Double-Side Sticker Labeling System
Square Bottle Double Side Sticker Labeling Machine
Review front-and-back labeling for square and rectangular HDPE bottles. The published double-side platform covers approved 100 mL–1 L HDPE square, oval and rectangular formats at up to 60 BPM; the actual bottle shape determines the guide and label-head settings.
- Output
- Reference: Up to 60 BPM
- Format
- 100 mL–1 L HDPE bottles
- Accuracy
- Reference: ±1 mm label placement accuracy
- Method
- Two label heads for front-and-back application

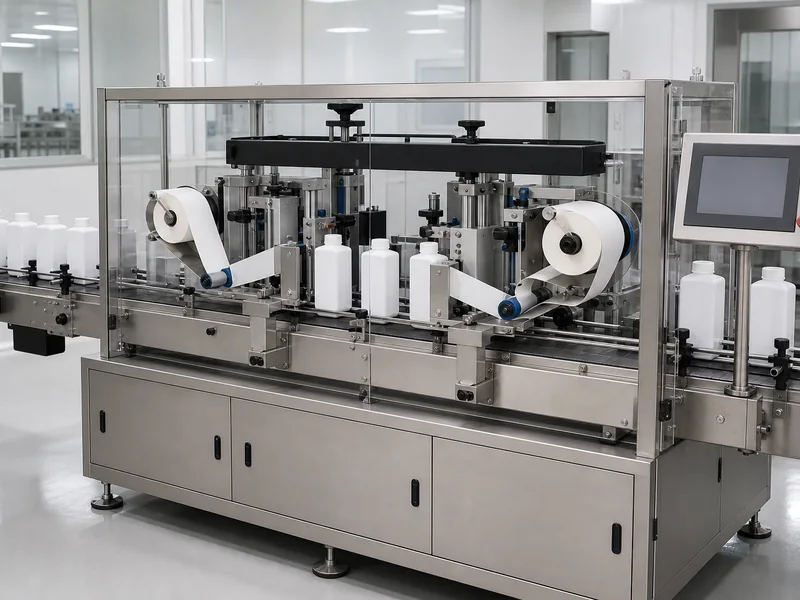

AI-generated conceptual visualization of this machine. Final configuration may vary by approved project scope.
Machine overview
Front-and-Back Labeling for Square and Rectangular Bottles
H M Pharma Machines manufactures this double-side sticker labeling machine in Ahmedabad, Gujarat, India. Its published scope covers approved 100 mL–1 L HDPE square, oval and rectangular bottles.
For square and rectangular projects, identify the two label faces and the required front-and-back positions. A bottle separator and synchronized conveyor guide each container between two label dispensers as it travels from left to right.
Output is up to 60 BPM and placement accuracy is ±1 mm, subject to approved bottle and label quality. Review face orientation, guides and the individual label-head positions using the actual bottle and both label samples.
Machine running video
Watch the Square Bottle Double Side Sticker Labeling Machine in Operation
Review the reference machine demonstration, then discuss your container format and required output.
Select Play to load the video. This demonstration shows a reference configuration; final format parts, output, utilities, controls and guarding follow the approved project scope.
Verified configuration
Verified Operating Range
Final suitability remains subject to approved bottle, label and label-roll samples.
60 BPMMaximum rated output
100 mL–1 LApproved HDPE bottle range
±1 mmPlacement accuracy
2 HeadsFront-and-back application
Why this machine
Verified Features of the Square Bottle Double Side Sticker Labeling Machine
02
Double-Side Application
Two label heads apply front-and-back self-adhesive labels in one pass.
03
Delta Controls
Delta PLC, Delta 4-inch HMI and Delta drive/VFD provide operator control and synchronized speed adjustment.
04
Automatic Label-Length Detection
The control system detects label length for the approved label roll.
05
GMP-Model Construction
SS-304 cladding is used in exposed machine areas.
06
Low-Maintenance Changeover
Final settings and change parts are matched to approved bottle and label samples.
Operating process
How the Square Bottle Double Side Sticker Labeling Machine Works
The verified configuration moves bottles from left to right through four synchronized stages.
Bottle Infeed
Approved bottles enter the adjustable conveyor.
Bottle Separation
A separator spaces each bottle for controlled label application.
Double-Side Labeling
Two synchronized dispensers apply the front and back self-adhesive labels.
Discharge
The labeled bottle transfers from the machine for the next approved line operation.
Applications & selection
Approve the Two Label Faces and Bottle Format
Square Bottle Faces
Identify the approved front and back faces and the required label positions before setting the bottle guides and label heads.
Rectangular Bottle Orientation
Provide the actual rectangular bottle so face orientation and guide settings can be matched to its geometry.
Published HDPE Range
The published scope is approved 100 mL–1 L HDPE square, oval and rectangular bottles, with maximum bottle height 300 mm.
Two Label Applications
Two independently adjusted heads apply front-and-back self-adhesive labels in one conveyor pass. Supply both labels and their roll specifications.
Label Stock and Sensing
Confirm label material, backing and winding direction. Transparent labels require review of the optional transparent-label sensor.
Oval Bottle Review
For an oval body, use the oval bottle labeling guide to review the two broad faces and format-specific orientation.
Use the approved bottle and front/back labels for the output and placement trial. The published up-to-60 BPM and ±1 mm references remain subject to sample quality and operating conditions; model code and any deviations are confirmed with the order.
Technical details
Square Bottle Double Side Sticker Labeling Machine Specifications
60 BPMMaximum output
±1 mmPlacement accuracy
220 V ACSingle-phase, 50 Hz
4 kWApproximate connected load
| Machine | Square Bottle Double Side Sticker Labeling Machine |
|---|---|
| Label Heads | Two heads for double-side self-adhesive label application |
| Operating Direction | Left to right |
| Maximum Bottle Height | 300 mm |
| Conveyor | Adjustable 800–900 mm height; 88 mm width |
| Construction | GMP model with SS-304 cladding in exposed areas |
|---|---|
| Controls | Delta PLC, Delta 4-inch HMI and Delta drive/VFD |
| Label Drive | Stepper motor standard; optional Delta servo upgrade |
| Compressed Air | Not required for the standard configuration |
| Safety | No-bottle/no-label interlock, emergency stop and overload protection |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. Up to 60 bottles per minute (BPM), subject to approved samples and operating conditions. |
| Accuracy / Acceptance Criterion | Published reference. ±1 mm label placement, subject to bottle and label quality. |
| Electrical Power | Published reference. 220 V AC, single-phase, 50 Hz; approximately 4 kW connected load. |
| Utilities | Published reference. Compressed air is not required for the standard configuration; coding, vision and data interfaces are order-specific. |
| Overall Dimensions (L × W × H) | Published reference. Approximately 3000 × 800 × 2000 mm (L × W × H). |
| Net / Shipping Weight | Published reference. Approximately 300 kg net / 400 kg gross. |
| Capacity / Format Range | Published reference. Approved 100 mL–1 L HDPE square, oval and rectangular bottles; maximum bottle height 300 mm. |
| Warranty | Published reference. 12 months from dispatch, subject to the approved order terms. |
| Installation / Commissioning Scope | Published reference. One-time installation, commissioning and operator training are included, subject to the responsibilities defined in the approved order. |
Final suitability requires approved bottle, label and label-roll samples. Model number and transparent-label sensor make are confirmed with the approved order.
Options & project scope
Verified Configuration and Support
Standard Label Drive
Stepper-motor label dispensing is included in the standard configuration.
Optional Servo Upgrade
Delta servo-based label dispensing is available as the verified drive upgrade.
Transparent Labels
An optional transparent-label sensor can be selected; the sensor make is confirmed with the approved order.
Installation Support
One-time installation, commissioning and operator training are included. Customer-side utilities and site logistics follow the approved order responsibilities.
Controls & protection
Verified Controls, Alarms and Safety Interlocks
The verified control platform combines synchronized label dispensing with essential operator and drive protection.
Delta PLC & VFD
Delta PLC logic and Delta drive/VFD control the machine sequence and synchronized speeds.
4-Inch Delta HMI
The operator interface uses a 4-inch Delta HMI.
Automatic Label Detection
Automatic label-length detection supports setup for the approved label roll.
No-Bottle / No-Label
The machine includes no-bottle/no-label interlock logic.
Emergency Stop
An emergency-stop control is included in the verified safety scope.
Overload Protection
Drive and motor overload protection is included.
Frequently asked questions
Square Bottle Double Side Sticker Labeling Machine FAQs
Answers based on the verified machine configuration and approved sample requirements.
Which bottle range is published for the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, the verified range is approved 100 mL–1 L HDPE square, oval and rectangular bottles. Final suitability depends on approved bottle and label samples.
What labeling speed is published for the Square Bottle Double Side Sticker Labeling Machine?
Published output is up to 60 bottles per minute, subject to approved bottle and label samples, front-and-back synchronization and operating conditions.
What label-placement accuracy is published for the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, label placement accuracy is ±1 mm, subject to bottle and label quality and approved samples.
Which controller and label-drive arrangement is used on the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, the machine uses a Delta PLC, Delta 4-inch HMI and Delta drive/VFD. Standard label dispensing uses a stepper motor; a Delta servo dispensing upgrade is optional.
Which utilities are required by the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, the verified electrical supply is 220 V AC, single-phase, 50 Hz with an approximate 4 kW connected load. Compressed air is not required for the standard configuration.
What dimensions and weight are published for the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, machine dimensions are 3000 × 800 × 2000 mm, with approximately 300 kg net and 400 kg gross weight.
Which safety interlocks are verified on the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, the verified scope includes no-bottle/no-label logic, emergency stop and overload protection.
Which optional features are verified for the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, verified options are Delta servo-based label dispensing and a transparent-label sensor. The sensor make is confirmed with the approved order.
What warranty and installation support is listed for the Square Bottle Double Side Sticker Labeling Machine?
For the Square Bottle Double Side Sticker Labeling Machine, the warranty is 12 months from dispatch. One-time installation, commissioning and operator training are included; customer-side site utilities and logistics are arranged as specified in the approved order.
