For approved square, rectangular and stable flat-sided bottles or containers, with conveyor feed with face orientation and top stabilization where required.

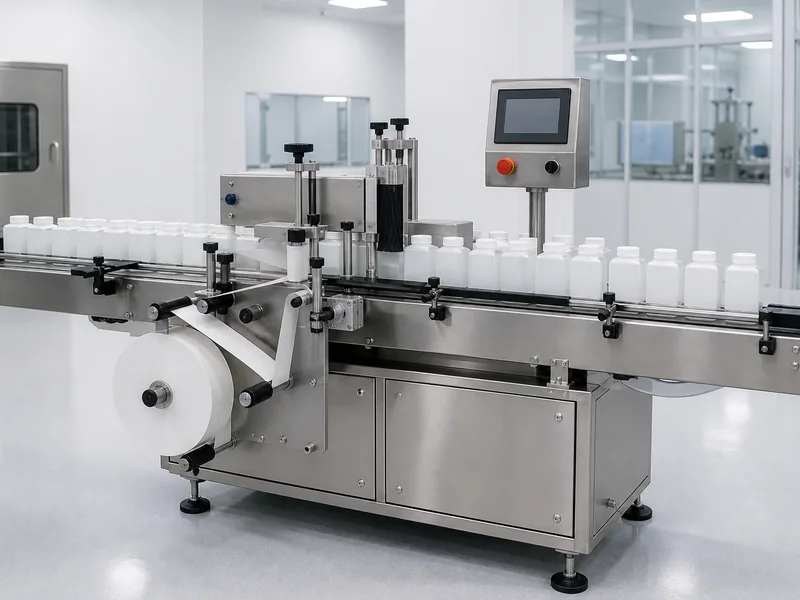

Machine overview
H M Pharma Machines manufactures the Square Bottle Single Side Sticker Labeling Machine in Ahmedabad, Gujarat, India for pharmaceutical, nutraceutical, cosmetic, food, chemical and allied production applications.
The Square Bottle Single Side Sticker Labeling Machine uses conveyor feed with face orientation and top stabilization where required for container or label-web handling. Its approved process completes when labeled containers discharge in the approved orientation.
Detailed engineering for the Square Bottle Single Side Sticker Labeling Machine aligns label-head, sensor, conveyor and recipe control with the approved application, target output, utility schedule and final line layout before the GA drawing is released.
Why this machine
The Square Bottle Single Side Sticker Labeling Machine is intended for approved square, rectangular and stable flat-sided bottles or containers; performance is assessed against the output and acceptance criteria stated for the approved configuration.
Conveyor feed with face orientation and top stabilization where required.
Label-head, sensor, conveyor and recipe control.
For the Square Bottle Single Side Sticker Labeling Machine, the materials and cleanability review follows this product-contact requirement: Container guides, label-contact rollers, guards and conveyor materials are selected from approved product and label samples.
Container changeover covers face orientation, side and top guides, label-dispenser position, sensor settings and the press-on arrangement.
Labeled containers discharge in the approved orientation.
Operating process
Flat-sided containers are spaced, oriented and stabilized so one pressure-sensitive label can be placed accurately on the selected bottle face and pressed down.
Square or rectangular bottles enter on the conveyor with guides adjusted to maintain a consistent travel path.
The handling system separates bottles, presents the selected flat face to the label head and applies top stabilization where the format requires it.
The product sensor triggers one label onto the selected face, and a roller or brush presses the adhesive label evenly against the surface.
The labeled bottle remains supported through the application zone and leaves the conveyor section in the approved orientation.
Applications & selection
Flat-sided pharmaceutical containers are oriented and stabilized so one approved label is pressed onto the selected bottle face.
Nutraceutical bottles and jars can be single-side labeled when their flat panel, dimensions and label position suit the guide system.
Cosmetic and personal-care packs benefit from controlled face presentation for applying a pressure-sensitive label to an approved flat surface.
Food and beverage containers are accepted after panel consistency, label stock, adhesive and conveyor stability are demonstrated.
Chemical and agrochemical packs require label and adhesive compatibility with the container surface and expected storage environment.
The labeler can run alone or connect after filling and capping, with downstream coding, inspection or packing added as required.
Technical details
| Machine | Square Bottle Single Side Sticker Labeling Machine |
|---|---|
| Category | Labeling Machines |
| Suitable For | Approved square, rectangular and stable flat-sided bottles or containers |
| Working Principle | Containers are spaced, oriented and stabilized while one label head dispenses onto the selected face and a roller or brush presses it. |
| Infeed / Handling | Conveyor feed with face orientation and top stabilization where required |
| Outfeed / Transfer | Labeled containers discharge in the approved orientation |
| Machine Construction | GMP-oriented stainless-steel construction as defined in the approved scope |
|---|---|
| Contact Materials | Container guides, label-contact rollers, guards and conveyor materials are selected from approved product and label samples. |
| Control System | Label-head, sensor, conveyor and recipe control |
| Changeover | Settings, guides and format parts matched to approved samples or drawings |
| Optional Scope | Clear-label sensing, coding, combined round-container handling and inspection are configurable. |
| Line Integration | Standalone supply or integration with approved upstream and downstream machines |
| Model / Series | Configuration-specific. The model code is assigned in the approved quotation after the product, pack, process and automation scope are fixed. |
|---|---|
| Output / Throughput | Published reference. Up to 50 bottles per minute, depending on container and label size. |
| Accuracy / Acceptance Criterion | Published reference. ±1 mm label-placement accuracy. |
| Electrical Power | Published reference. 1 kW; 230 V, single-phase, 50 Hz. |
| Utilities | Configuration-specific. Electrical supply is required; compressed air is listed only for configured actuators, with coding, vision and data interfaces stated separately. |
| Overall Dimensions (L × W × H) | Published reference. 1830 × 1250 × 1500 mm (L × W × H); conveyor height adjustable from 800 to 900 mm. |
| Net / Shipping Weight | Published reference. Approximately 300 kg net / 500 kg gross. |
| Capacity / Format Range | Published reference. Label height 10–150 mm; label length 12 mm to unlimited; minimum gap 4 mm; roll diameter up to 300 mm; core diameter 75–76 mm. |
| Warranty | Published reference. 1 year; commencement, coverage and exclusions are defined in the approved order. |
| Installation / Commissioning Scope | Published reference. Installation and commissioning are available; the exact included work and customer responsibilities are defined in the approved order. |
Final specifications follow the approved quotation, layout, datasheet and project URS.
Options & project scope
Approved square, rectangular and stable flat-sided bottles or containers.
Clear-label sensing, coding, combined round-container handling and inspection are configurable.
Documentation for the Square Bottle Single Side Sticker Labeling Machine records label-head, sensor, conveyor and recipe control, the confirmed utilities and the agreed acceptance tests; drawings, manuals and qualification records are supplied when ordered.
Controls & protection
Controls, alarms and interfaces are confirmed for the ordered configuration.
Label-head, sensor, conveyor and recipe control.
Infeed readiness: conveyor feed with face orientation and top stabilization where required.
Approved transfer: labeled containers discharge in the approved orientation.
Configuration-specific: Electrical supply is required; compressed air is listed only for configured actuators, with coding, vision and data interfaces stated separately.
Published reference: ±1 mm label-placement accuracy.
Clear-label sensing, coding, combined round-container handling and inspection are configurable.
Frequently asked questions
The Square Bottle Single Side Sticker Labeling Machine applies one self-adhesive label accurately to the selected flat face of a container.
Suitable products and formats include approved square, rectangular and stable flat-sided bottles or containers. Final suitability is confirmed from approved samples, drawings and process details.
Containers are spaced, oriented and stabilized while one label head dispenses onto the selected face and a roller or brush presses it.
The Square Bottle Single Side Sticker Labeling Machine handles material using conveyor feed with face orientation and top stabilization where required.
Labeling rate depends on bottle spacing and orientation, flat-panel stability, label length, dispenser response, wipe-down time and any coding or inspection operation.
Side guides, bottle separator, top hold-down where required, label position, peel plate and wipe-down parts are adjusted from approved bottle-and-label samples.
Bottle guides, separator, optional top hold-down, peel plate and wipe-down roller or brush are selected from approved flat-sided container and label samples.
The available control scope includes label-head, sensor, conveyor and recipe control. Final alarms and interlocks are documented in the approved control specification.
Clear-label sensing, coding, combined round-container handling and inspection are configurable.
The machine is normally placed after capping, keeps the selected flat face registered through label application and transfers the pack to coding, inspection or final packing.
Documentation can include bottle-and-label format data, label web path and roll specification, guide and application layout, electrical and sensor diagrams, changeover manual and labeling FAT report.
Please provide the following: container and label samples, selected face, winding direction, output, orientation and coding requirement.
Contact us
Share your application and required capacity for a quotation.
Confirmed standards
Output, format range, utilities and dimensions remain subject to the approved machine scope.
Automation uses a Delta PLC, 4-inch Delta HMI and Delta drive/VFD.
Delta servo is used where servo motion is included in the selected configuration.
The confirmed warranty period is one year.
Installation and commissioning are available; the exact scope is defined in the approved order.
