Engine & Motor Oil
Application-matched bottle or can filling with dosing, nozzle and closure arrangements selected for the approved pack.
Engine, gear and industrial oil bottling

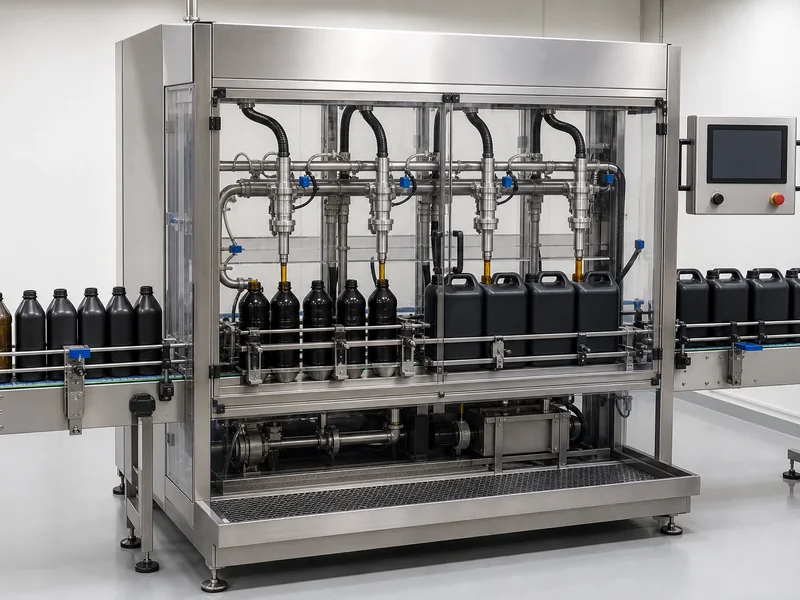

Automatic Lubricant Oil Filling Machine
H M Pharma Machines configures lubricant oil filling machine solutions for approved engine, motor, gear, hydraulic and industrial oils, with dosing selected around viscosity, temperature, fill range, container and production output.
Application overview
Lubricant Filling Built for Product and Pack
Lubricants can range from relatively free-flowing hydraulic oils to high-viscosity gear oils. Density, operating temperature, product aeration, stringing and container geometry all influence the dosing method and achievable output.
The approved project may use electronic flow measurement, net-weight filling, servo piston dosing or calibrated gear-pump filling. Pumps, meters, seals, hoses or piping and nozzles are selected only after product compatibility review. Anti-drip and controlled filling profiles can be included where appropriate.
Filling can be synchronized with cap feeding and tightening, induction or other approved sealing, labeling, coding, inspection, accumulation and conveying.
Typical applications
Engine, Gear, Hydraulic and Industrial Oil Filling
Every product requires compatibility and performance review; these categories indicate common inquiries.
Gear & High-Viscosity Oil
Pump, piston, feed and nozzle concepts reviewed around viscosity, temperature, dose and required cycle time.
Hydraulic & Industrial Oils
Configurable filling for approved hydraulic, compressor and other lubricant products across compatible containers.
Technology comparison
Lubricant Oil Filling Machine Options
Final suitability and performance are confirmed through product and container trials.
| Technology | Measurement method | Initial guidance | Product page |
|---|---|---|---|
| Gear Pump | Calibrated pump rotation | Compatible lubricants ranging from free-flowing to viscous with selected pump and seals | View details |
| Servo Piston | Programmable piston displacement | Approved lubricant oils across the confirmed viscosity and fill range | View details |
| Flow Meter | Electronic flow measurement | Compatible lubricants where the meter suits product and operating conditions | View details |
| Load Cell | Continuous net-weight measurement | Weight-based filling for approved bottles, cans and pails | View details |
Project checklist
What We Need to Select Your Lubricant Filler
01
Lubricant Details
Provide product type, density, minimum and maximum viscosity and operating temperature.
02
Container & Closure
Share bottle, can or pail samples or drawings plus cap and sealing details.
03
Fill Performance
Confirm dose range, target tolerance, containers per minute and production target.
04
Site & Line Scope
Define utilities, area classification if applicable, downstream machines and available layout.
Specification basis
How Final Lubricant Oil Filling Machine Specifications Are Confirmed
This page compares more than one dosing technology, so one universal model or numerical specification would be misleading. The selected machine receives a complete approved datasheet before manufacture.
| Model / Series | Not applicable. This page compares multiple filling technologies; the selected machine model and series are stated in the approved quotation. |
|---|---|
| Output / Throughput | Configuration-specific. No single output applies across all technologies; The rated output in containers per minute is stated for the selected machine after product-and-container trials. |
| Accuracy / Acceptance Criterion | Configuration-specific. The guaranteed filling tolerance and FAT sampling method are defined for the selected dosing technology, product, dose and container. |
| Electrical Power | Configuration-specific. Voltage, phase, frequency and maximum connected load are stated in the selected machine's approved electrical load list. |
| Utilities | Configuration-specific. Electrical supply, compressed air, product feed or temperature control, gas or vacuum, and cleaning interfaces are listed for the selected machine. |
| Overall Dimensions (L × W × H) | Overall dimensions are model- and configuration-specific. Final L × W × H is confirmed in the customer-approved GA drawing based on capacity, output, process requirements and site layout before order execution. |
| Net / Shipping Weight | Configuration-specific. The selected machine's net and packed shipping weights are stated in its approved datasheet or packing list. |
| Capacity / Format Range | Configuration-specific. The selected technology's fill-volume range, container range and product holding capacity are stated in its machine datasheet. |
| Warranty | Order-specific. Duration, commencement date, covered parts, exclusions and claim terms for the selected machine are stated in the approved quotation or order. |
| Installation / Commissioning Scope | Order-specific. The quotation states installation, commissioning, SAT, operator training and customer responsibilities for the selected machine. |
Frequently asked questions
Lubricant Oil Filling Machine FAQs
Which filling machine is suitable for lubricant oil?
Selection depends on lubricant type, viscosity and temperature, fill range, container, accuracy and output. Flow meter, load cell, servo piston or gear pump systems may be considered after review.
Can one machine fill engine oil and gear oil?
It may be possible within an approved operating range, but the large viscosity difference can change pump, nozzle, feed and output requirements. Both products should be tested.
How is lubricant dripping controlled?
Shut-off or diving nozzles, controlled filling profiles, pump reversal or other anti-drip provisions may be applied after trials.
Can the filler handle multiple containers?
Compatible formats can be handled through settings, guides and dedicated change parts within the approved range.
How does the Automatic Lubricant Oil Filling Machine integrate with capping and labeling?
Yes. Filling can be integrated with cap feeding, tightening, sealing, labeling, coding, inspection and conveyors.
Planning a Lubricant Oil Filling Line?
Send your lubricant, container, fill range and output for technical review.
